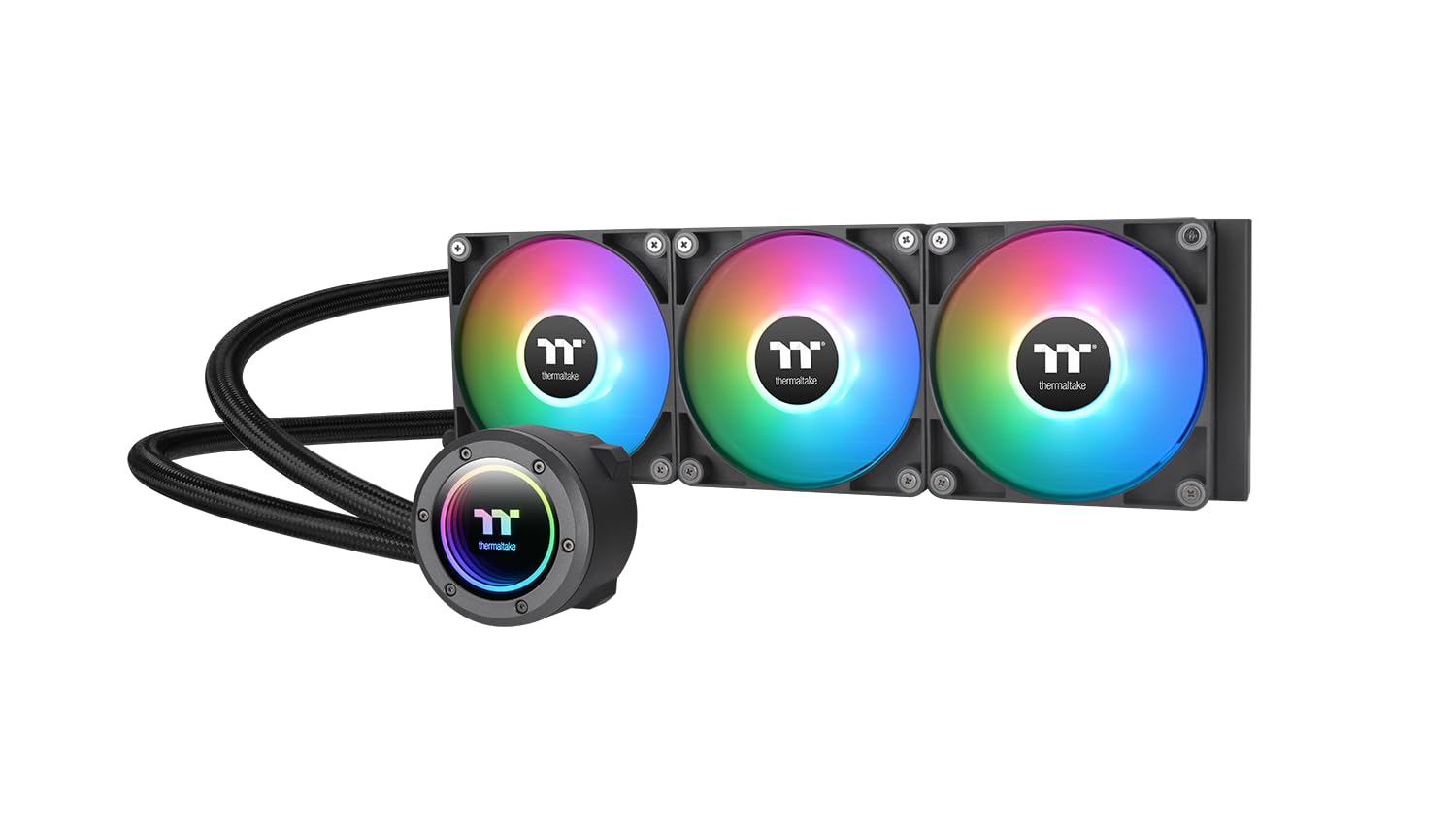

01 / 07Thermaltake TH360 V2 ARGB Sync 360mm Liquid CPU Cooler (Black)
The Thermaltake TH360 V2 ARGB Sync 360mm Liquid CPU Cooler (Black) is a high-performance all-in-one water cooler built for enthusiast gaming and workstation PCs that demand both thermal headroom and visual impact. Rated for up to 355W TDP, it pairs a thickened 20mm copper base chamber with a compact 27mm aluminum radiator to pull sustained heat away from Intel Core i9 and AMD Ryzen 9 class processors without throttling. Three CT120 ARGB PWM fans run at 500–2000 RPM via a single daisy-chain cable, reducing motherboard header clutter while syncing their addressable RGB lighting natively with ASUS Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light, and ASRock Polychrome. The rotational pump head features a multi-depth infinity mirror ARGB design and is compatible out of the box with Intel LGA 1851/1700 and AMD AM5/AM4 as well as legacy sockets back to LGA 2011 and AM2. Backed by a 40,000-hour rated pump life, sealed low-evaporation tubing, and a 5-year manufacturer warranty, the TH360 V2 ARGB Sync delivers reliable long-term cooling for mid-tower and full-tower builds.
Features

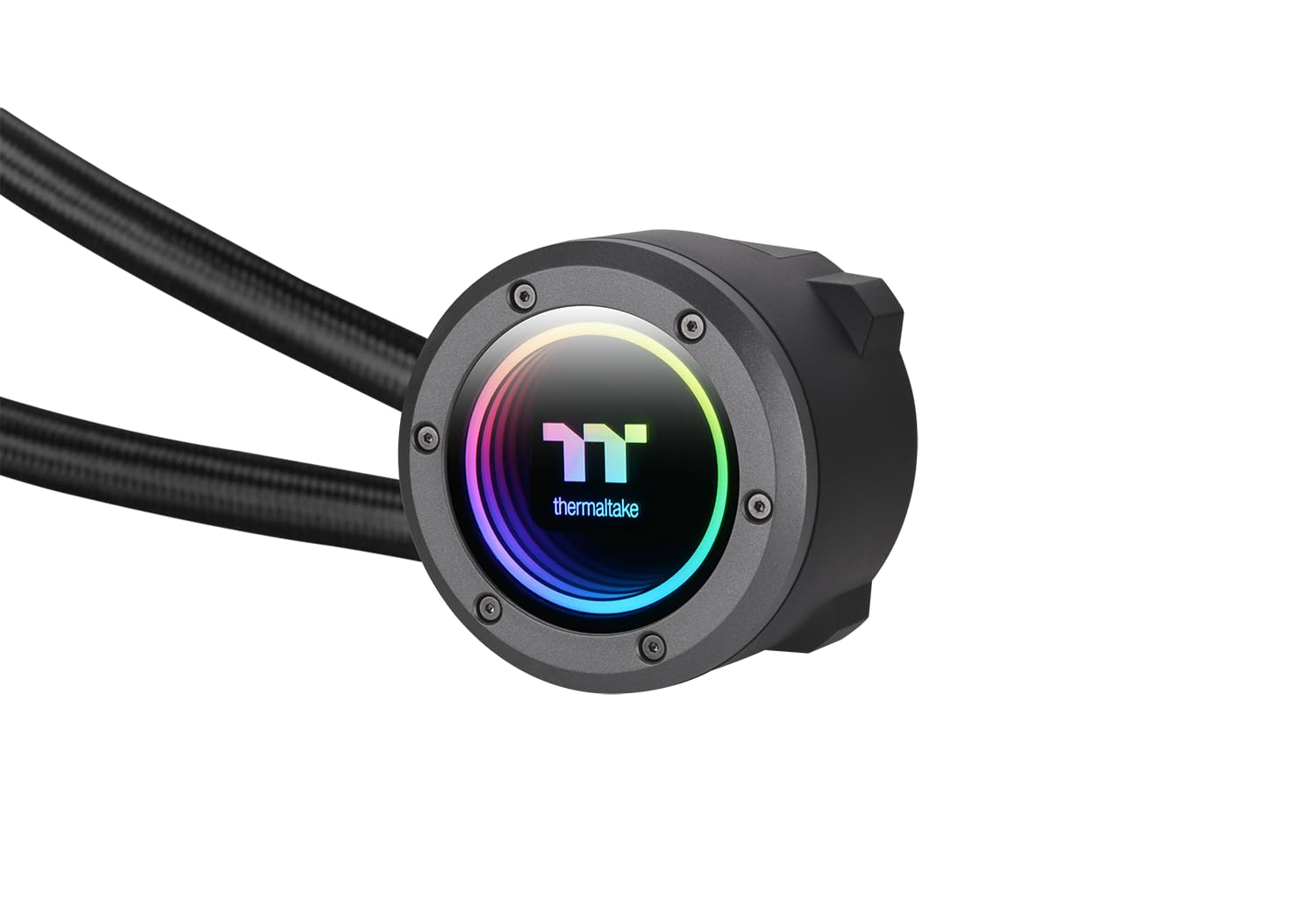

- Infinity Mirror Pump Head — The redesigned rotational cap with 360-degree rotation and a multi-depth ARGB infinity mirror effect delivers striking visual depth that standard single-ring lighting can't match, syncing with 5V addressable RGB motherboard headers.

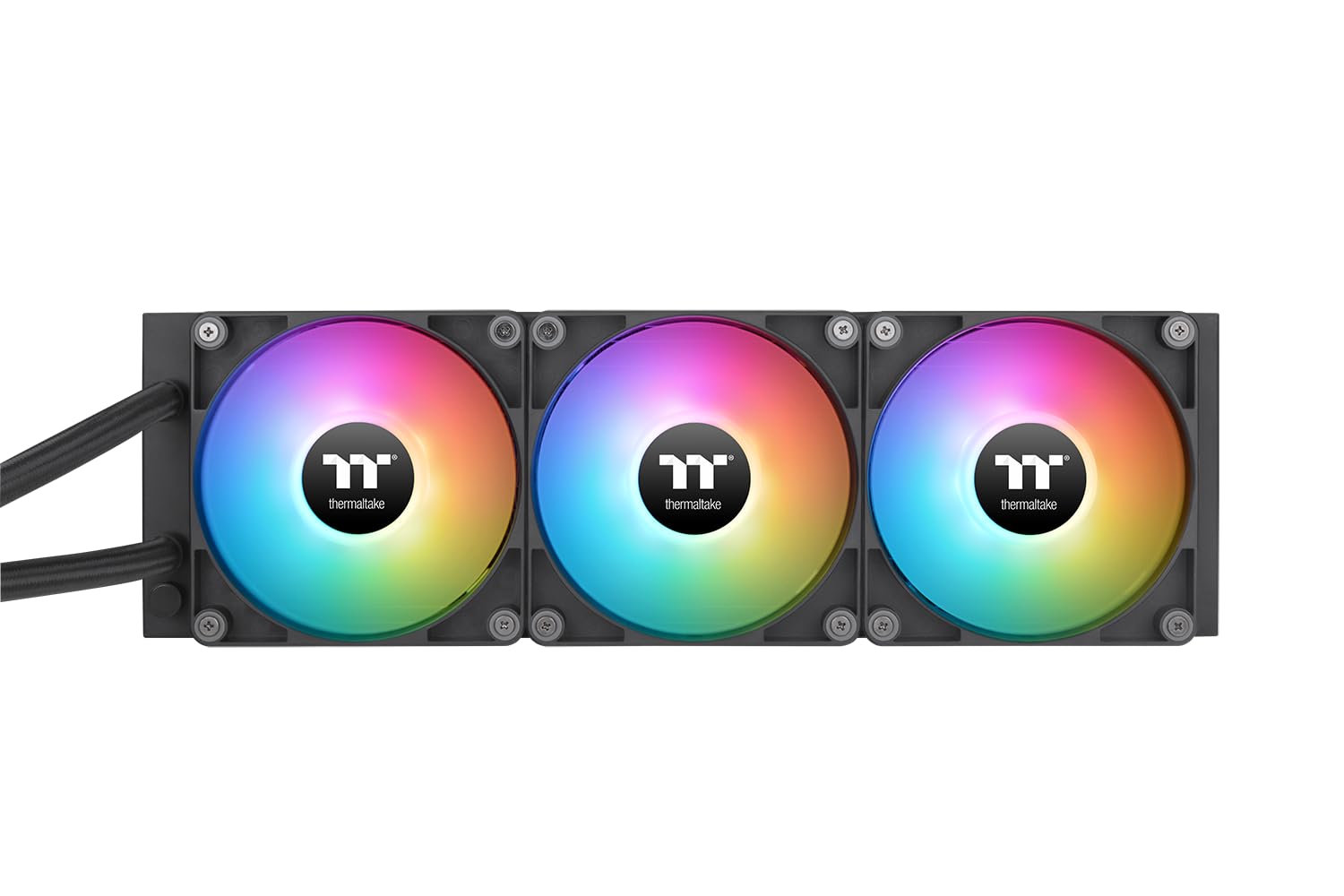

- 3 × CT120 ARGB Fans with Daisy-Chain Wiring — Three 120mm CT120 ARGB PWM fans (500–2000 RPM) deliver 57.05 CFM airflow at 2.23 mm-H₂O static pressure. Daisy-chain cabling minimises the number of PWM and ARGB header connections required on your motherboard.
- 355W TDP Rating — Engineered to handle sustained thermal loads up to 355W, making it capable of cooling high-TDP CPUs including Intel Core i9 and AMD Ryzen 9 series without throttling.

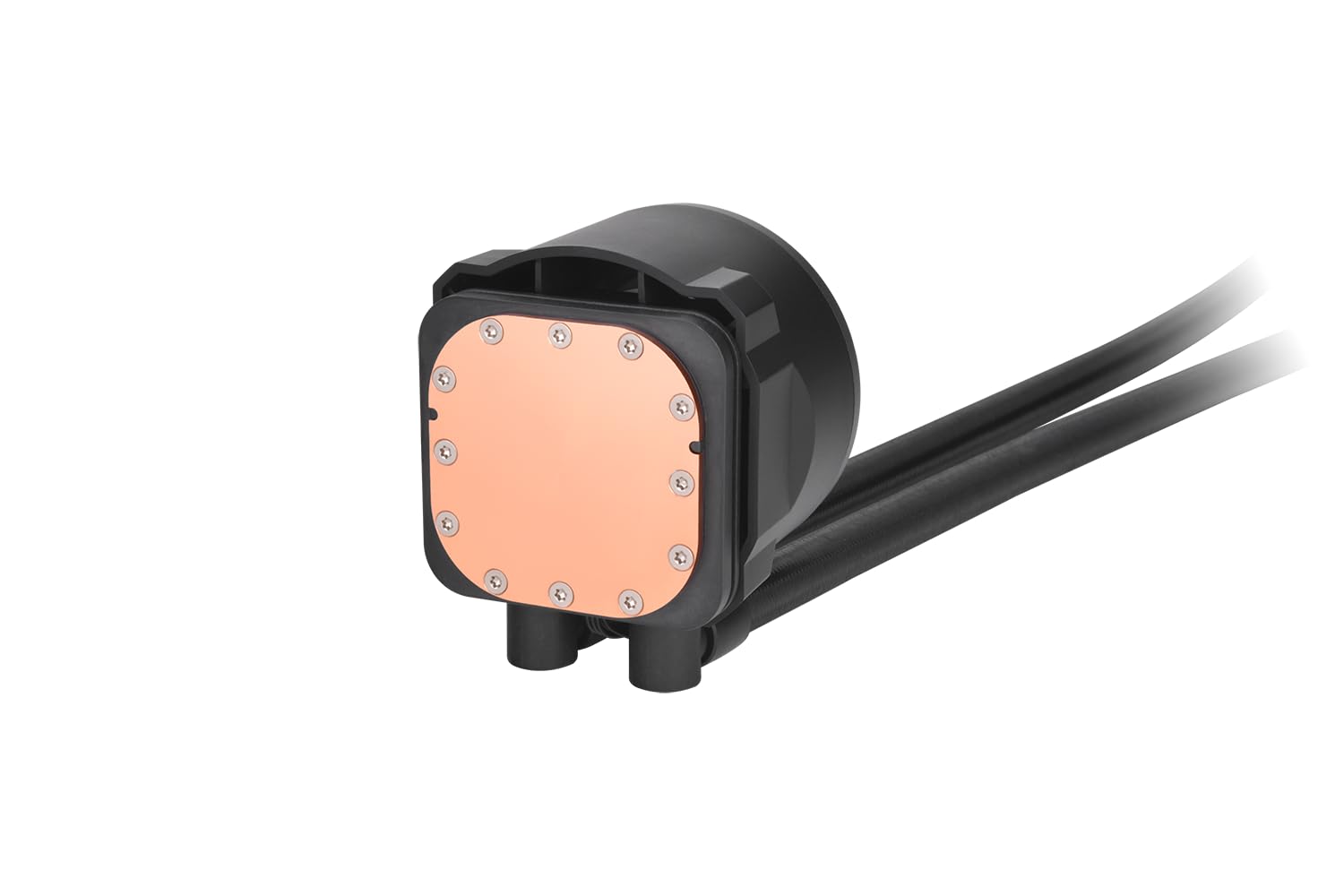

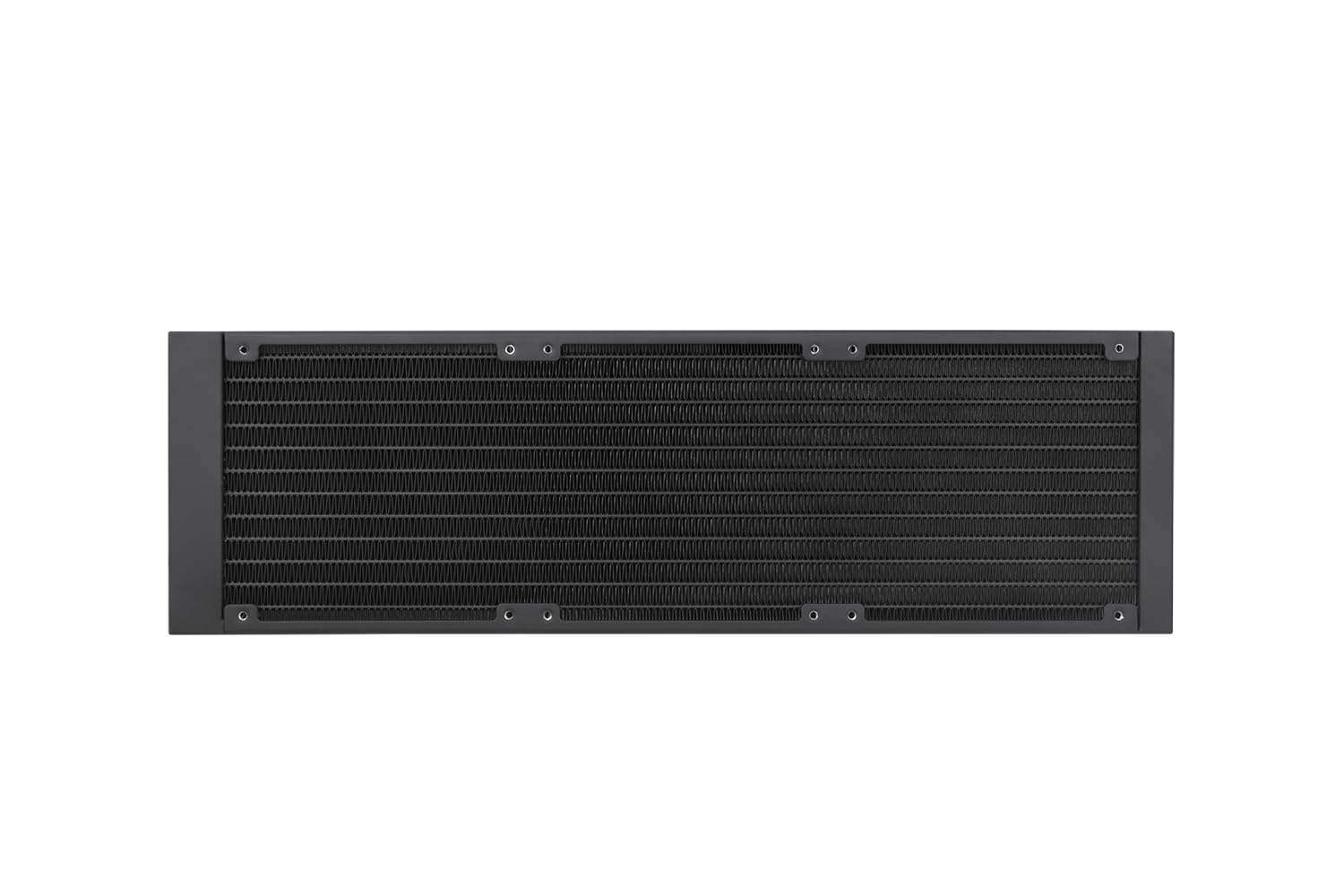

- 27mm Slim Radiator with 20mm Copper Chamber — A thickened copper base combined with a compact 27mm-depth 396mm × 120mm aluminum radiator increases heat-transfer surface area while keeping the unit compatible with tighter chassis clearances.
- Universal Socket Compatibility — Ships with mounting brackets for Intel LGA 1851/1700/1200 and AMD AM5/AM4, covering all current-generation platforms. Legacy support extends to Intel LGA 2066/2011 and AMD AM3+/AM3/AM2+.
- 5V Addressable RGB Motherboard Sync — Native support for ASUS Aura Sync, Gigabyte RGB Fusion 2.0, MSI Mystic Light Sync, and ASRock Polychrome Sync — control all lighting from a single software without installing Thermaltake's own controller.
- ARGB Connector Clip — An included locking clip prevents accidental 5V ARGB cable disconnection during cable management, a common pain point when assembling dense builds.
- Low-Evaporation Tubing — 460mm rubber tubes with minimal evaporation rate eliminate the need for coolant refills over the cooler's rated 40,000-hour (at 25°C) pump bearing lifespan.
In the Box
- TH360 V2 ARGB Sync 360mm AIO Liquid Cooler (Black)
- 3 × CT120 ARGB 120mm PWM fans (pre-installed on radiator)
- Intel mounting bracket (LGA 1851/1700/1200/1156/1155/1151/1150/2066/2011)
- AMD mounting bracket (AM5/AM4/AM3+/AM3/AM2+/AM2)
- 1 × 4-pin PWM daisy-chain cable
- 1 × 3-pin 5V ARGB daisy-chain cable
- 5V ARGB connector clip
- Thermal paste (pre-applied)
- Installation screws and standoffs
Technical Specification
| Spec | Value |
|---|---|
| Part Number | CL-W362-PL12SW-A |
| Color | Black |
| Radiator Size | 360mm |
| Radiator Dimensions | 396 × 120 × 27 mm |
| Radiator Material | Aluminum |
| Fan Count | 3 × 120mm |
| Fan Dimensions | 120 × 120 × 25 mm |
| Fan Speed | PWM 500–2000 RPM |
| Fan Noise Level | 25.8 dB-A |
| Fan Max Airflow | 57.05 CFM |
| Fan Max Static Pressure | 2.23 mm-H₂O |
| Fan Bearing Type | Hydraulic Bearing |
| Fan Life Expectancy | 40,000 hrs @ 25°C |
| Fan Connector | 4-Pin PWM + 5V 3-Pin ARGB (daisy-chain) |
| Pump Speed | PWM 1500–3300 RPM |
| Pump Voltage | 12V (motor) + 5V (ARGB) |
| Pump Connector | 4-Pin PWM + 5V 3-Pin ARGB |
| Water Block Material | Copper |
| Tube Length | 460 mm |
| Tube Material | Rubber |
| TDP Rating | 355 W |
| Intel Socket Support | LGA 2066, 2011, 1851, 1700, 1200, 1156, 1155, 1151, 1150 |
| AMD Socket Support | AM5, AM4, AM3+, AM3, AM2+, AM2 |
| RGB Sync Support | ASUS Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome Sync |
| ARGB Header | 5V 3-pin addressable |
| Warranty | 5 years manufacturer warranty |
| Country of Origin | China |
Why NVSX
Four pillars.
Zero compromises.
Authorized Stock
Official AMD, NVIDIA, Logitech, Corsair, Lian Li, G.Skill, WD, Samsung & Cooler Master partner. Every unit direct from distributor. Serial numbers logged. Zero grey-market.
Genuine Warranty
Full manufacturer warranty on every product. Defective unit? We handle the brand RMA — you don't deal with distributors.
Expert Support
Real humans. Baner, Pune workshop. WhatsApp direct line for build advice, compatibility checks, and anything post-sale.
Tracked & Insured
Ships within 24 hours of order confirmation. Fully insured, tracked delivery India-wide.

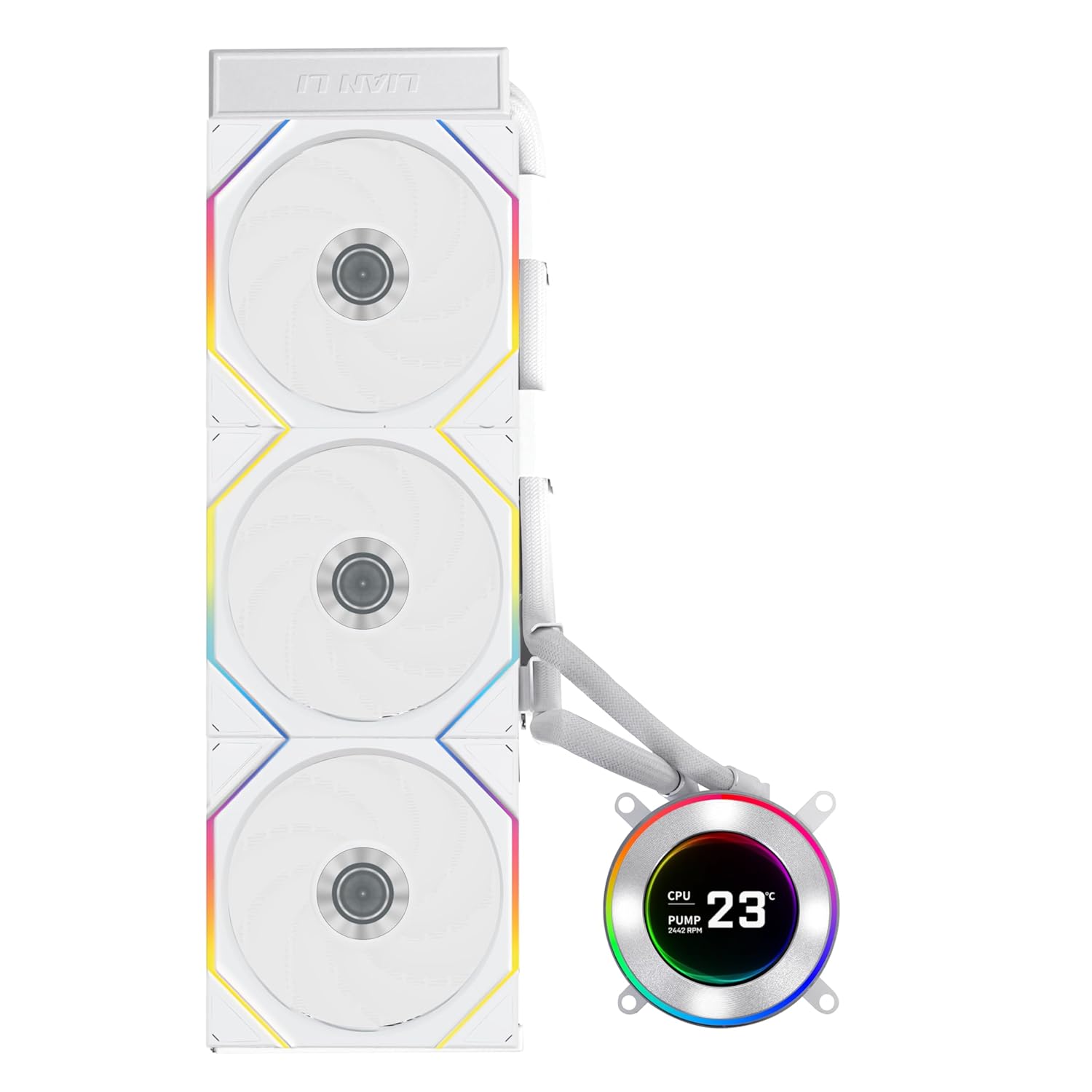

Lian Li Hydroshift II LCD-C 360TL AIO Liquid CPU Cooler (White)
Lian Li Hydroshift II LCD-C 360TL AIO Liquid CPU Cooler (Black)

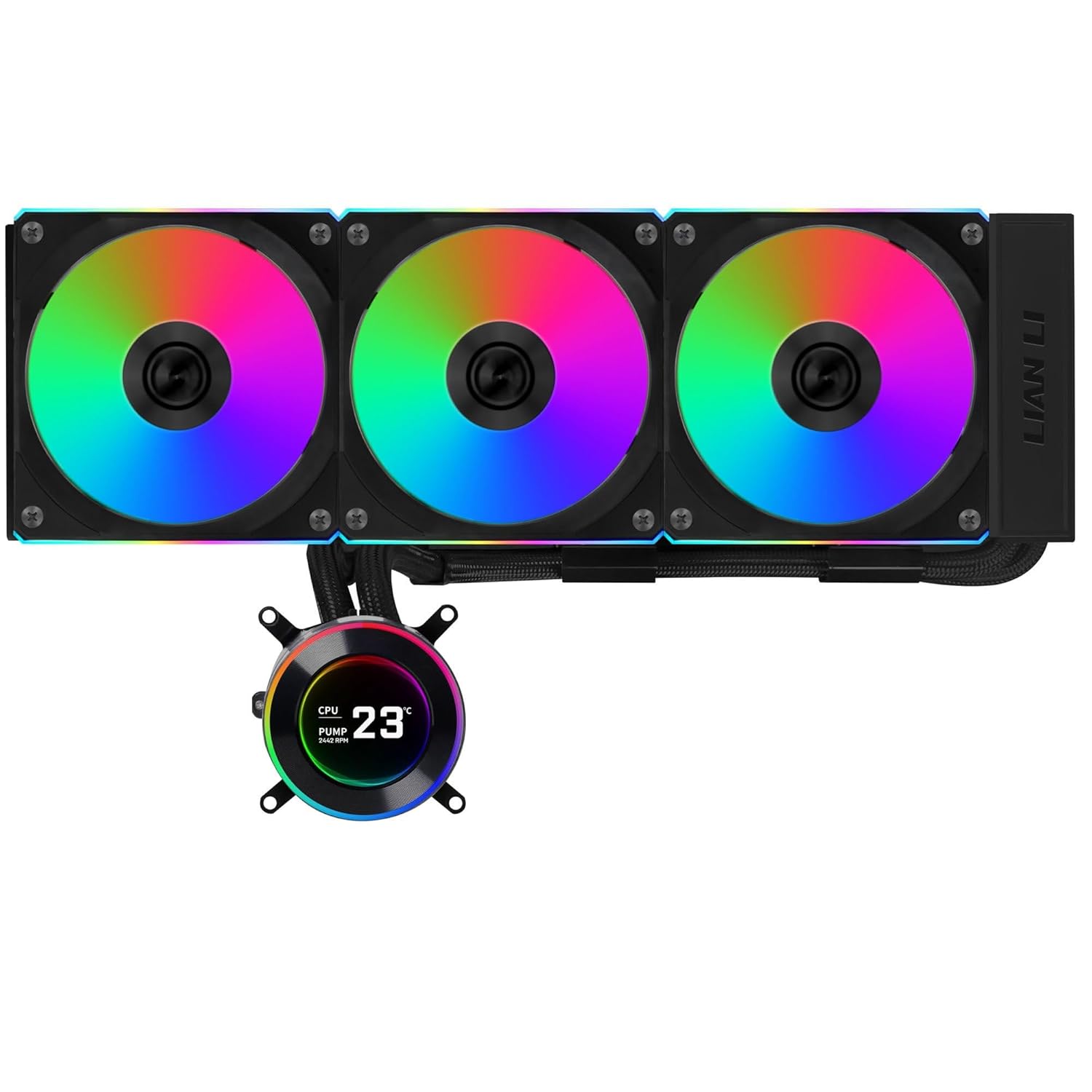

Lian Li Hydroshift II LCD-C 360CL AIO Liquid CPU Cooler (Black)
MSI MAG CoreLiquid I360 360mm AIO Liquid CPU Cooler (White)

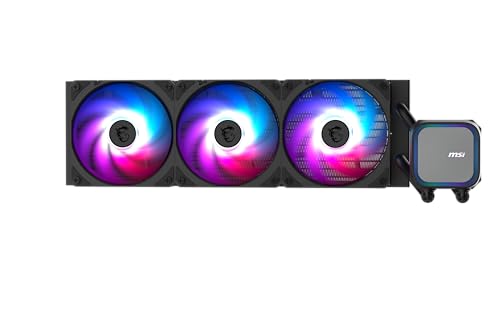

MSI MAG CoreLiquid A13 360 ARGB 360mm AIO Liquid CPU Cooler (Black)
Cooler Master Hyper 612 Apex Dual Tower CPU Air Cooler (Black)

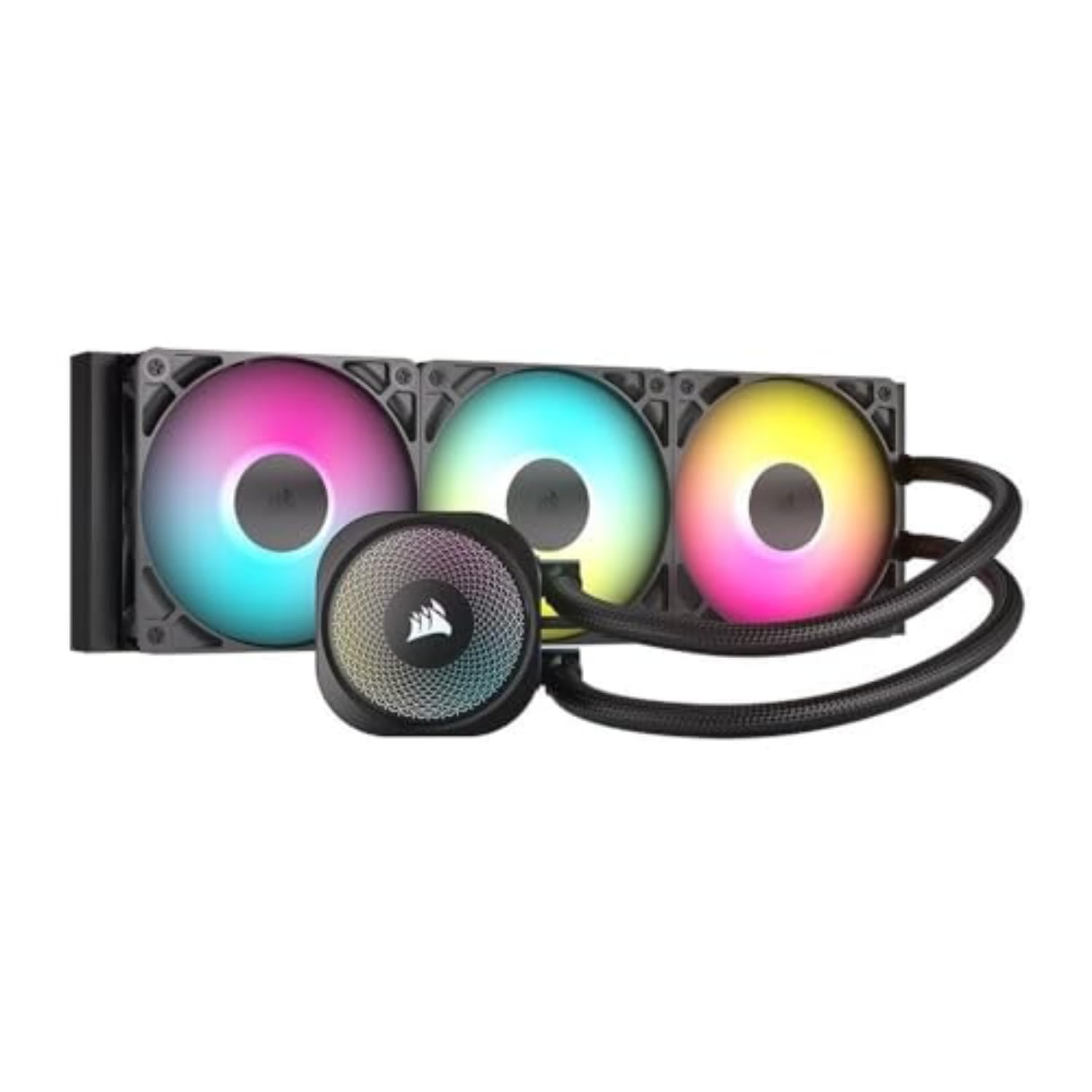

Corsair Nautilus 360 RS ARGB 360mm Liquid CPU Cooler (Black)
