01 / 04Thermaltake TH360 V2 Ultra EX ARGB Sync 360mm Liquid CPU Cooler with LCD (Black)
The Thermaltake TH360 V2 Ultra EX ARGB Sync 360mm Liquid CPU Cooler with LCD (Black) is an enthusiast-grade AIO engineered around a high-resolution 2.1" TFT-LCD water block, a 3300 RPM performance pump, and Thermaltake's new MagForce 2.0 magnetic fan daisy-chain system. Built for 1440p and 4K gaming rigs paired with Intel Core i9 Arrow Lake or AMD Ryzen 9 Zen 5 CPUs, the 480×480 LCD displays real-time CPU temperature, clocks, and custom GIF/video artwork through TT RGB Plus 2.0 software. Three CT120 EX ARGB Sync fans connect magnetically via MagForce 2.0 — no fiddly daisy-chain cables — while still supporting motherboard-level 5V ARGB sync with ASUS Aura, Gigabyte RGB Fusion, MSI Mystic Light, and ASRock Polychrome. Modular fan power allows the included fans to run as a matched set on the radiator or be redeployed individually elsewhere in the build. Compatible out of the box with Intel LGA 1851/1700/1200 and AMD AM5/AM4, the TH360 V2 Ultra EX fits any mid-tower or full-tower case accepting a 360mm radiator and ships with a 5-year manufacturer warranty for long-term peace of mind.
Features
- 2.1" TFT-LCD Water Block — A 480×480 high-resolution LCD mounted on the pump head displays real-time CPU temperature, clock speeds, system load, and fully customisable GIF/video artwork through TT RGB Plus 2.0 software.
- MagForce 2.0 Magnetic Fan Daisy-Chain — Thermaltake's new magnetic connector design lets all three fans snap together on the radiator with zero visible cabling — no fiddly daisy-chain connectors, no stray wires in your build.
- 3300 RPM High-Performance Pump — The upgraded pump motor spins up to 3300 RPM — significantly higher than the base V2's 2000 RPM — delivering more coolant flow and sustained thermal headroom for overclocked 250W+ CPUs.
- 3 × CT120 EX ARGB Sync Fans — Three 120mm CT120 EX ARGB fans push high airflow across the radiator with synchronised 5V addressable RGB that ties into motherboard ecosystems (ASUS Aura, Gigabyte RGB Fusion, MSI Mystic Light, ASRock Polychrome).
- Fully Modular Fan Power — The included fans can run as a matched set on the radiator via one cable, or be redeployed individually elsewhere in the chassis using the three separate power cables provided — maximum flexibility for case airflow planning.
- Industrial-Design Cap — Premium aesthetic finish on the water block for builders who want the pump head as a visual centrepiece without compromising on function.
- Broad Socket Compatibility — Ships with mounting hardware for Intel LGA 1851/1700/1200 and AMD AM5/AM4 out of the box, with legacy support extending to LGA 2011/2066 and AM3+/AM3/AM2+.
- Intended for 360mm-capable Mid-Tower & Full-Tower Cases — Compact 396mm radiator length fits any medium-to-large chassis designed to accept a 360mm AIO in roof or front mounting.
In the Box
- TH360 V2 Ultra EX 360mm AIO Liquid Cooler with 2.1" LCD Water Block (Black)
- 3 × CT120 EX ARGB Sync 120mm PWM fans with MagForce 2.0 magnetic connectors
- Pump/LCD waterblock unit with pre-applied thermal paste
- Intel mounting bracket (LGA 1851/1700/1200/1156/1155/1151/1150/2011/2066)
- AMD mounting bracket (AM5/AM4/AM3+/AM3/AM2+/AM2)
- 1 × modular daisy-chain cable (single-cable mode)
- 3 × individual fan power cables (for distributed fan use)
- 5V ARGB signal cables
- Installation screws, standoffs, and manual
Technical Specification
| Spec | Value |
|---|---|
| Part Number | CL-W415-PL12SW-A |
| Color | Black |
| Radiator Size | 360mm |

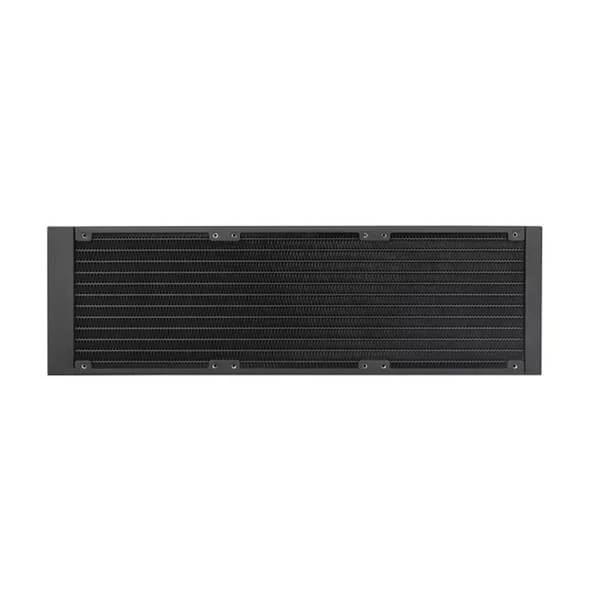

| Radiator Dimensions | 396 × 120 × 27 mm |
| Radiator Material | Aluminum |

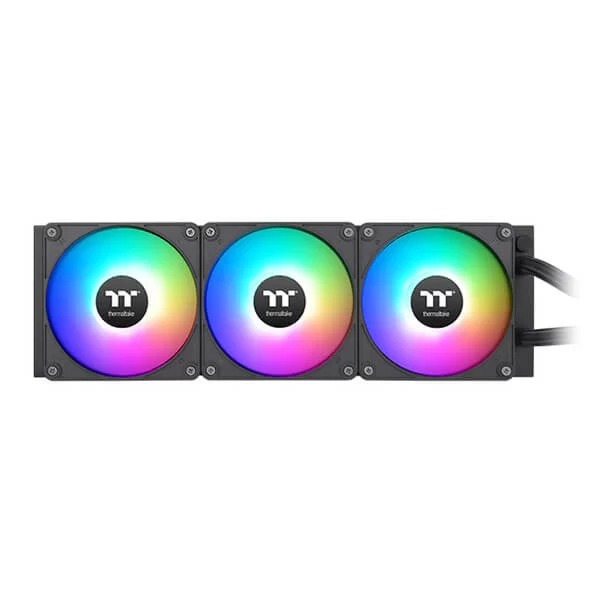

| Fan Count | 3 × 120mm CT120 EX ARGB Sync |
| Fan Dimensions | 120 × 120 × 25 mm |
| Fan Connector System | MagForce 2.0 Magnetic Daisy-Chain |
| Fan Speed | PWM 500–2000 RPM |
| Fan Noise Level | Up to 28 dB-A |
| LCD Display | 2.1" TFT-LCD |
| LCD Resolution | 480 × 480 |
| LCD Control | TT RGB Plus 2.0 Software |
| Pump Speed | PWM up to 3300 RPM |
| Pump Voltage | 12V (motor) + 5V (ARGB/LCD) |

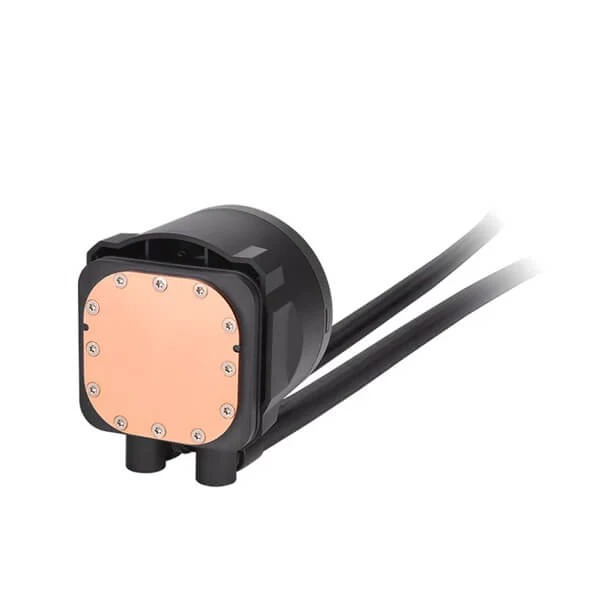

| Water Block Material | Copper |
| Tube Length | 460 mm |
| Tube Material | Rubber |
| TDP Rating | 355 W |
| Intel Socket Support | LGA 2066, 2011, 1851, 1700, 1200, 1156, 1155, 1151, 1150 |
| AMD Socket Support | AM5, AM4, AM3+, AM3, AM2+, AM2 |
| RGB Sync Support | ASUS Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome Sync |
| ARGB Header | 5V 3-pin addressable |
| Modular Fan Power | Yes — single-cable or per-fan individual cables |
| Warranty | 5 years manufacturer warranty |
| Country of Origin | China |
