01 / 06ASUS Pro WS TRX50-SAGE WiFi A AMD TR5 DDR5 CEB Workstation Motherboard

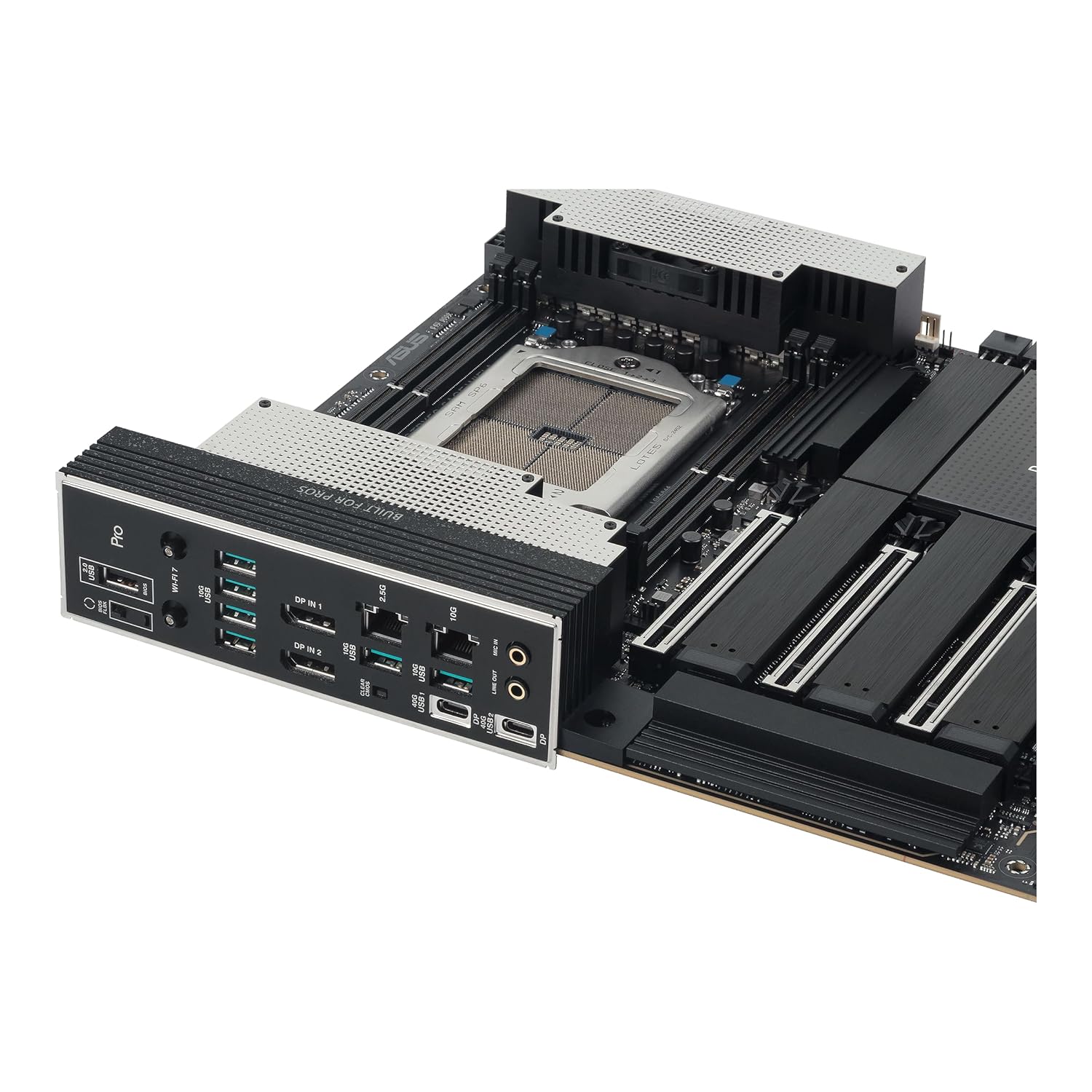

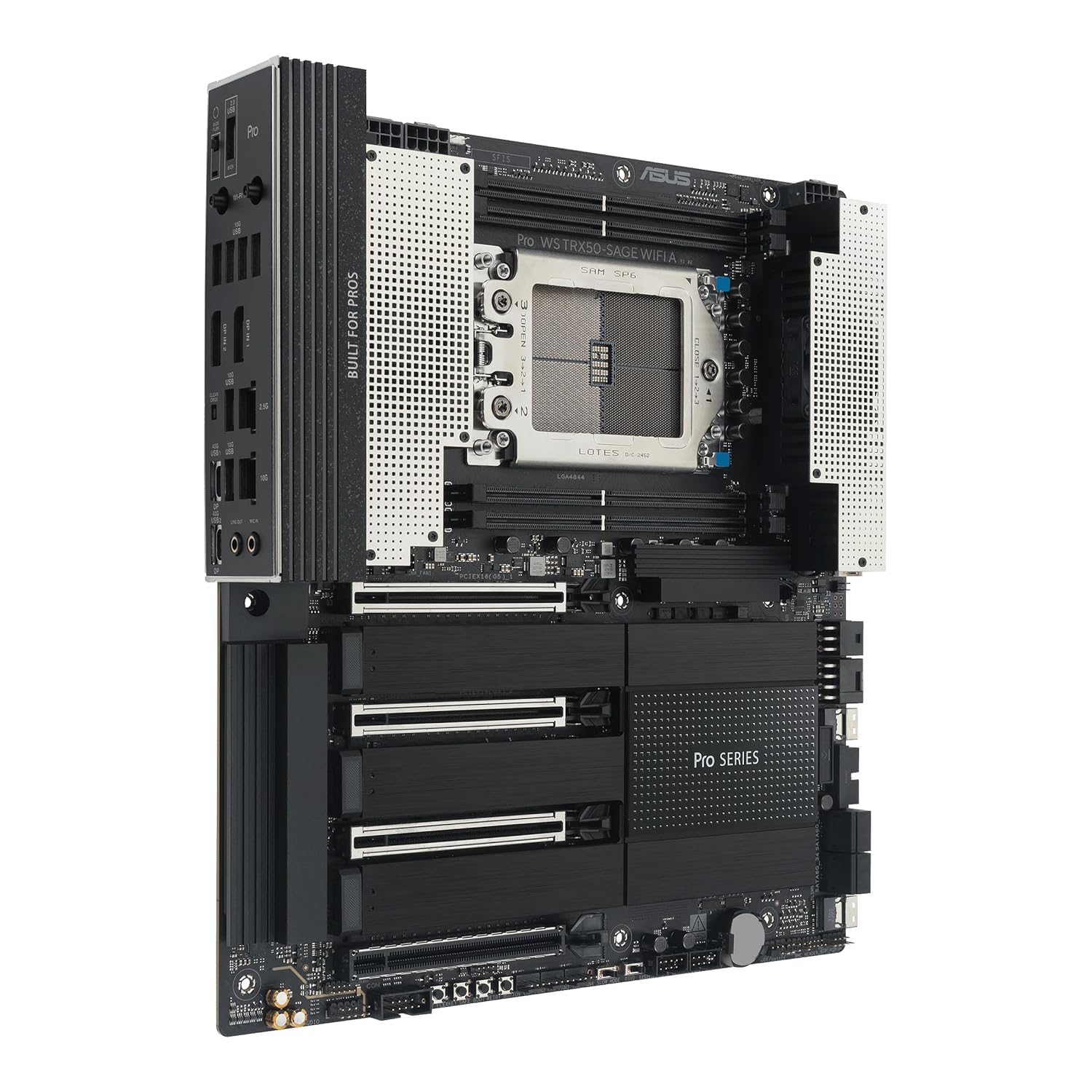

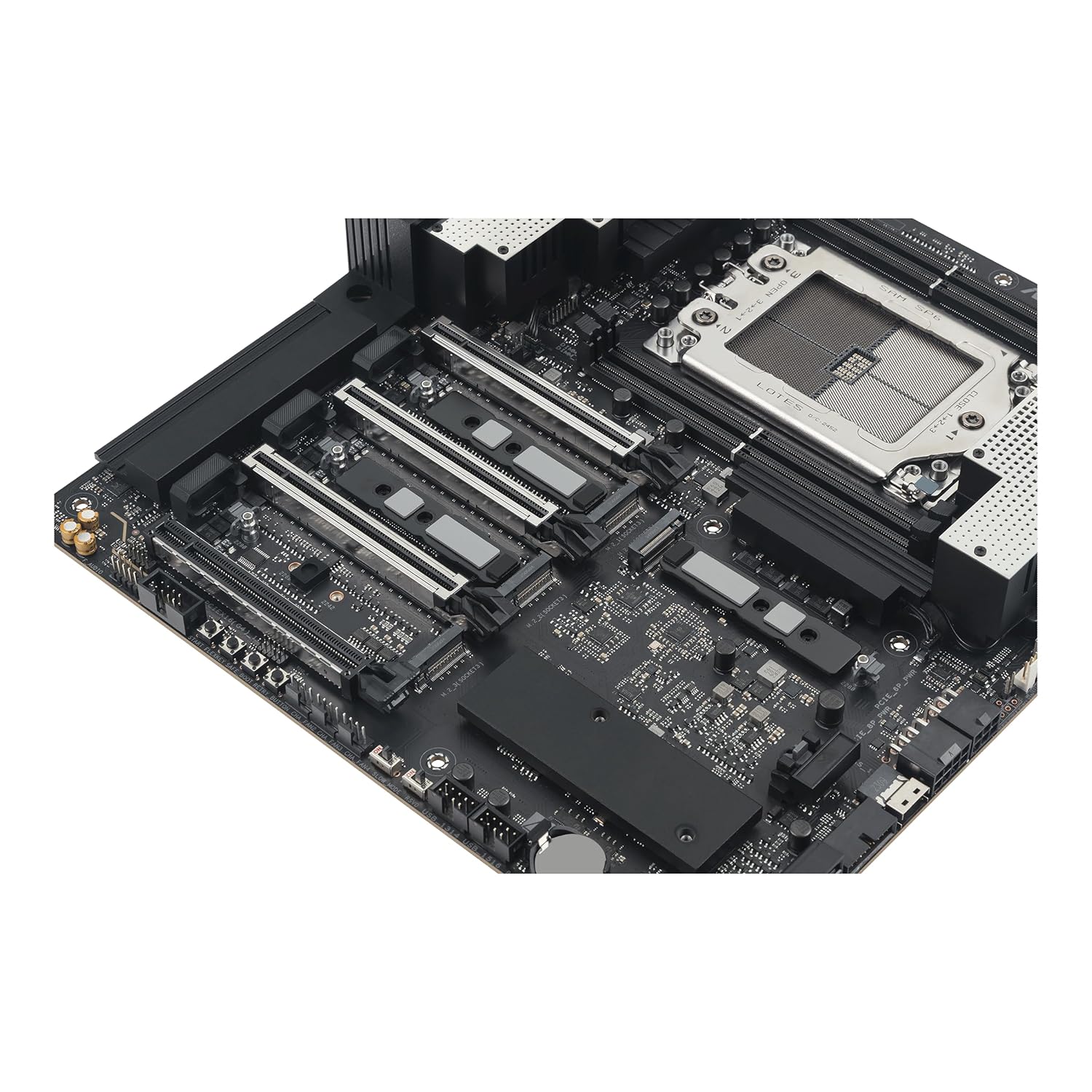

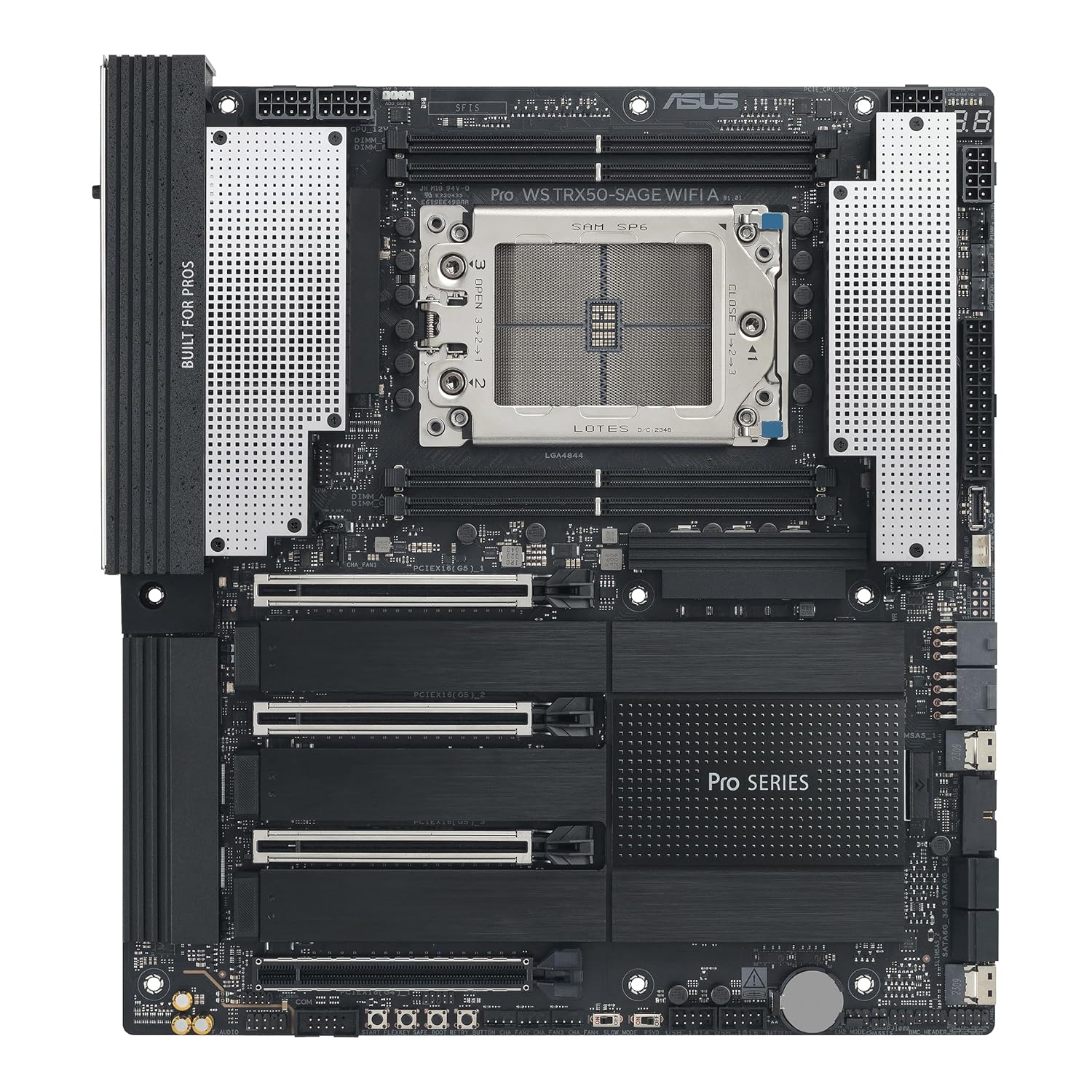

The ASUS Pro WS TRX50-SAGE WiFi A is a CEB workstation motherboard on the AMD TRX50 chipset supporting AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series and Threadripper 9000 & 7000 Series processors on the TR5 socket. A robust 20-stage VRM with dual 8-pin CPU connectors sustains the sustained power draw of up to 96-core Threadripper CPUs across AI inference and render workloads. Three PCIe 5.0 x16 and one PCIe 4.0 x16 slot enable multi-GPU compute setups, while four M.2 slots, up to 1TB ECC R-DIMM DDR5, dual Ethernet (10GbE + 2.5GbE), dual USB4 40Gbps, SlimSAS NVMe, and IPMI remote management deliver enterprise-class reliability. 3-year manufacturer warranty.
Features
- 96-Core Threadripper PRO 9000 & 7000 WX Support — Engineered for AMD's most powerful desktop processors, supporting Threadripper PRO 9000/7000 WX-Series and Threadripper 9000/7000 Series on the sTR5 socket.
- 20 Power-Stage VRM with Dual 8-Pin CPU Power — Massive VRM heatsink with high-current stages and dual 8-pin connectors sustain clean voltage delivery for 350W+ TDP workloads across extended AI training and 3D rendering sessions.
- Three PCIe 5.0 x16 + One PCIe 4.0 x16 Slots — Multi-GPU compute configurations use full-bandwidth PCIe 5.0 x16 electrical slots for maximum GPU-to-CPU throughput in deep-learning inference pipelines.
- Up to 1TB ECC R-DIMM DDR5 Memory — Four DDR5 DIMM slots support up to 1TB of registered ECC memory for memory-intensive workloads including large language model fine-tuning and scientific simulation.
- IPMI Remote Management — Hardware support for ASUS IPMI expansion cards and ASUS Control Center Express software enables out-of-band monitoring and remote power control for deployed workstations.

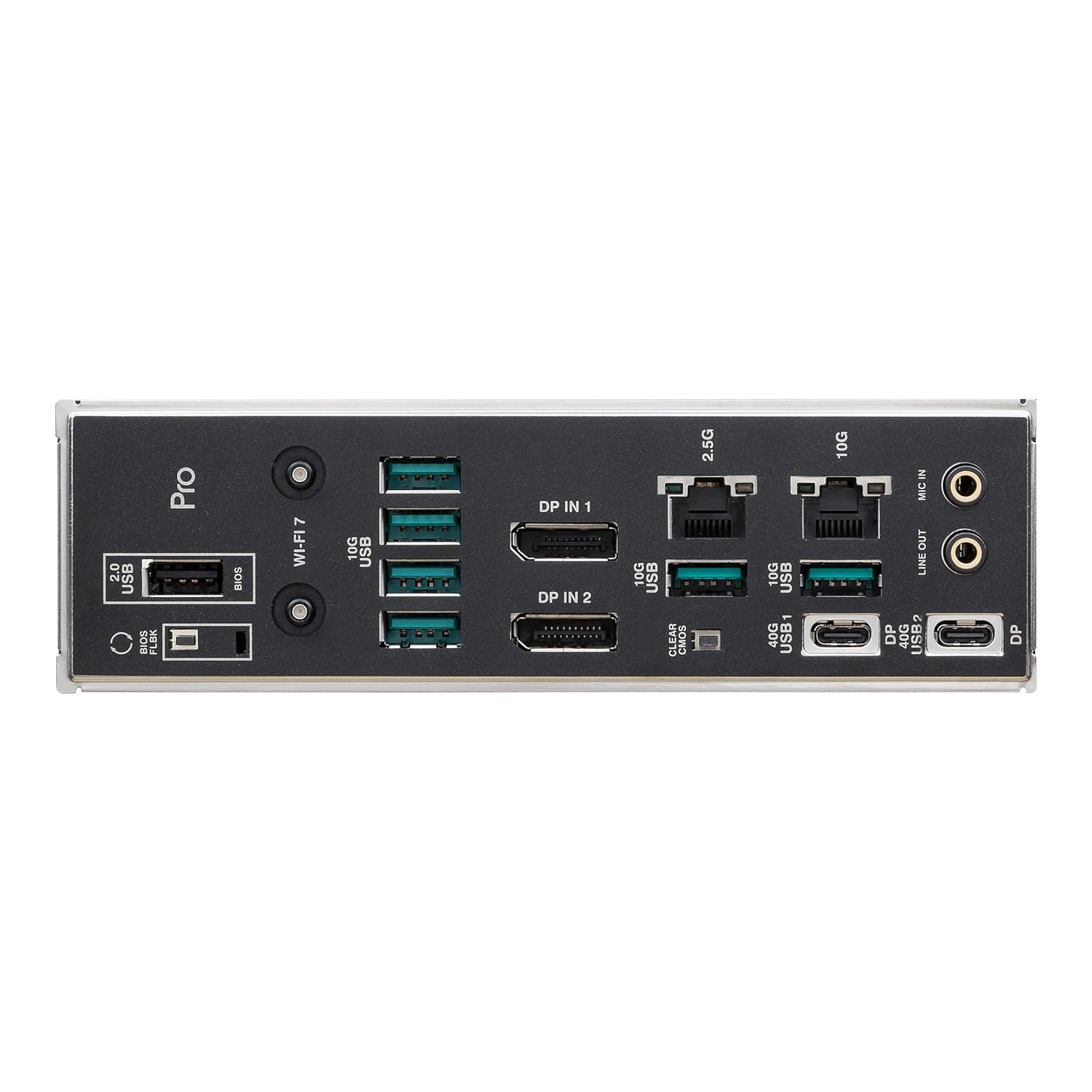

- Dual Ethernet (10GbE + 2.5GbE) — Two independent LAN ports support high-speed data transfers, dedicated management network separation, and direct NAS connections for large file workflows.
- Dual USB4 40Gbps + SlimSAS NVMe — Two USB4 rear ports and SlimSAS NVMe connectors expand storage and peripheral bandwidth well beyond standard desktop platform limits.
In the Box
- ASUS Pro WS TRX50-SAGE WiFi A Motherboard
- SATA cables
- Wi-Fi antenna
- M.2 rubber package
- User manual / quick installation guide
Technical Specification
| Spec | Value |
|---|---|
| ASIN | B0FH8176WQ |
| Model | Pro WS TRX50-SAGE WIFI A |
| CPU Socket | TR5 (sTR5) |
| Compatible CPUs | AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series; Threadripper 9000 & 7000 Series |
| Chipset | AMD TRX50 |
| Form Factor | CEB |
| Memory Type | DDR5 ECC R-DIMM |
| Memory Slots | 4 × DIMM |
| Memory Max | 1TB (1024GB) |
| PCIe Slots | 3 × PCIe 5.0 x16 + 1 × PCIe 4.0 x16 |
| M.2 Slots | 4 × M.2 |
| SATA Ports | 4 |
| Wireless | Wi-Fi 7 (BE) |
| Ethernet | 10GbE + 2.5GbE |
| USB (Rear) | 2 × USB4 40Gbps |
| Remote Mgmt | IPMI (expansion card support) |
| VRM | 20-stage dual 8-pin |
| Item Weight | 2.54 kg |
| Country of Origin | China |
| Warranty | 3 Years |
