01 / 07ASUS TUF Gaming B850-Plus WiFi AM5 DDR5 ATX Motherboard
The ASUS TUF Gaming B850-Plus WiFi is an ATX AMD B850 motherboard for AMD Ryzen 9000, 8000, and 7000-series processors on the AM5 platform. Fourteen 80A DrMOS power stages on an 8-layer PCB with dual 8-pin ProCool connectors deliver stable, AI-ready power for sustained workloads. Four DDR5 DIMM slots support up to 192GB, a PCIe 5.0 x16 slot handles current-generation GPUs, and three M.2 slots (one Gen5, two Gen4) with heatsinks handle high-speed NVMe storage. Connectivity includes Wi-Fi 7, Realtek 2.5Gbps Ethernet, USB 20Gbps Type-C on the rear IO, and BIOS Flashback for hassle-free firmware updates. 3-year manufacturer warranty.
Features

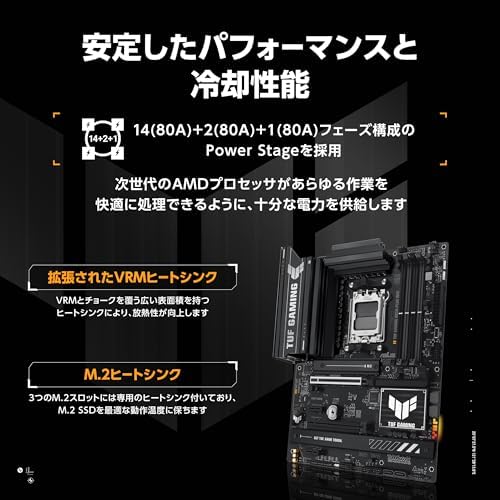

- 14+2+1 80A DrMOS Power Stages — Eight-layer PCB with dual 8+8 pin ProCool connectors and alloy chokes provide clean, stable power delivery for AMD Ryzen 9000-series CPUs under sustained AI and gaming workloads.

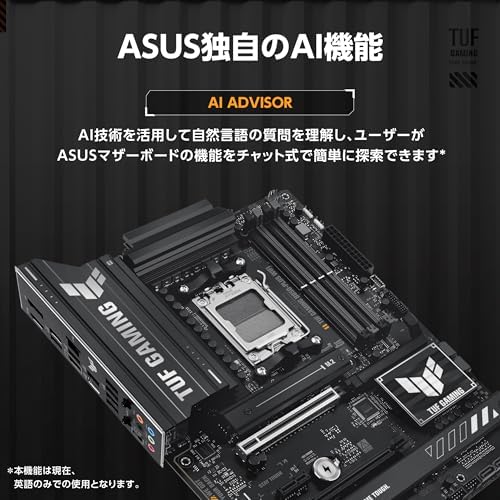

- AI Ready — Pre-configured for AI PC applications, with the power headroom and PCIe 5.0 bandwidth to handle demanding AI inference and acceleration tasks.
- PCIe 5.0 x16 Slot — Primary PCIe 5.0 x16 slot delivers full-bandwidth connectivity to current and next-generation discrete GPUs.
- Three M.2 Slots with Heatsinks — One PCIe 5.0 M.2 and two PCIe 4.0 M.2 slots, all equipped with M.2 heatsinks to prevent thermal throttling during sustained read/write operations.
- Wi-Fi 7 & 2.5Gbps LAN — Wi-Fi 7 (BE) for low-latency wireless connectivity alongside Realtek 2.5Gbps wired Ethernet for high-bandwidth gaming and streaming.
- USB 20Gbps Type-C + Thunderbolt Header — Rear USB 20Gbps Type-C port plus front USB 10Gbps Type-C and Thunderbolt (USB4) header support for maximum peripheral bandwidth.

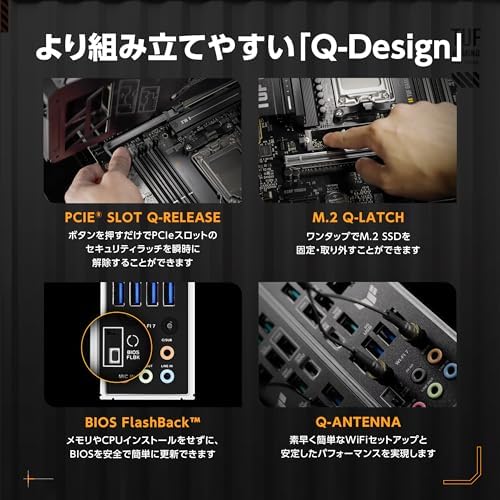

- BIOS Flashback — Update firmware from a USB drive without a CPU or RAM installed, simplifying compatibility preparation for new processors.

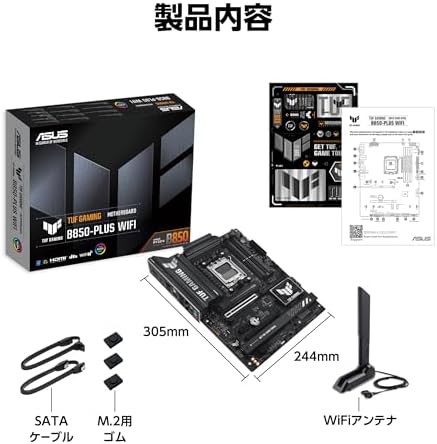

In the Box
- ASUS TUF Gaming B850-Plus WiFi Motherboard
- SATA cables
- Wi-Fi antenna
- M.2 screws and clips
- User manual / quick installation guide
- Support DVD
Technical Specification
| Spec | Value |
|---|---|
| ASIN | B0DQXFN2D9 |
| Model | TUF GAMING B850-PLUS WIFI |
| CPU Socket | AM5 |
| Compatible CPUs | AMD Ryzen 9000 / 8000 / 7000 |
| Chipset | AMD B850 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Memory Max | 192GB |
| Memory Speed | Up to 8000 MT/s (OC) |
| PCIe Slots | 1 × PCIe 5.0 x16, 2 × additional |
| M.2 Slots | 1 × PCIe 5.0, 2 × PCIe 4.0 (all with heatsinks) |
| SATA Ports | 6 |
| Wireless | Wi-Fi 7 (BE) |
| Ethernet | Realtek 2.5Gbps |

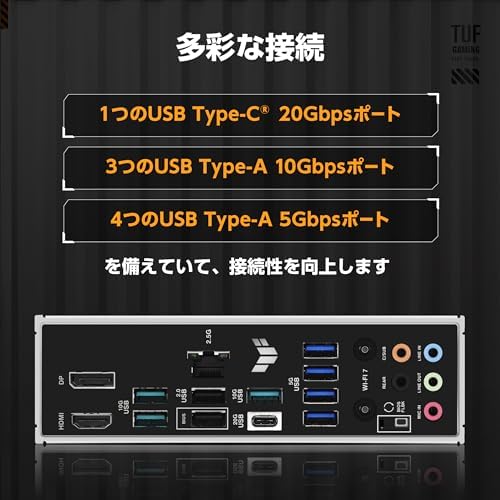

| USB (Rear) | 20Gbps Type-C, 10Gbps Type-A |
| Video Output | DisplayPort, HDMI |
| VRM | 14+2+1 (80A DrMOS) |
| Item Dimensions | 30.5 × 24.4 cm |
| Item Weight | ~1.9 kg |
| Country of Origin | China |
| Warranty | 3 Years |
