01 / 06ASUS TUF Gaming X870-Plus WiFi AM5 DDR5 ATX Motherboard
The ASUS TUF Gaming X870-Plus WiFi is an ATX AMD X870 motherboard for AMD Ryzen 9000, 8000, and 7000-series processors on the AM5 platform. Sixteen 80A power stages on an 8-layer PCB with ProCool connectors provide stable, AI-ready headroom for high-core-count Ryzen CPUs. Four DDR5 DIMM slots, a PCIe 5.0 x16 slot, and four M.2 slots (two Gen5, two Gen4 with massive heatsinks) deliver platform-level performance for gaming and creative workloads. Dual USB4 40Gbps ports, Wi-Fi 7, Realtek 2.5Gbps LAN, BIOS FlashBack, PCIe Slot Q-Release, and AI Overclocking round out a feature set designed for demanding AMD AM5 builds. 3-year manufacturer warranty.
Features

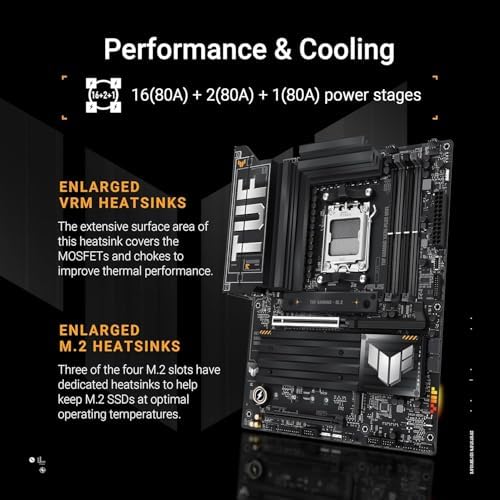

- 16+2+1 80A Power Stages — Eight-layer PCB with ProCool connectors, alloy chokes, and durable capacitors sustain peak performance for all Ryzen 9000-series CPUs including high-TDP desktop parts.

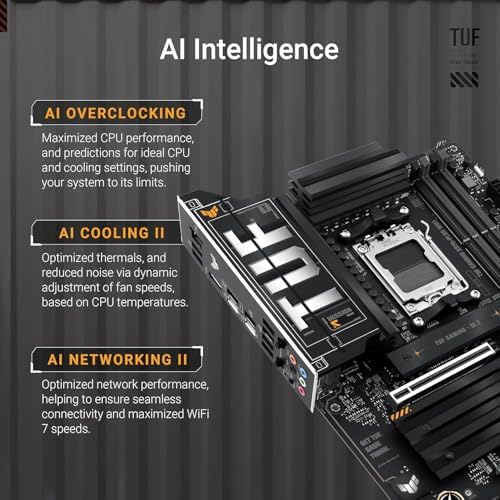

- AI Overclocking, Cooling & Networking — ASUS AI OC, AI Cooling II, and AI Networking II automatically tune CPU performance, fan curves, and network settings with minimal manual input.
- Four M.2 Slots with Heatsinks — Two PCIe 5.0 M.2 and two PCIe 4.0 M.2 slots with massive M.2 heatsinks prevent throttling during sustained NVMe read/write operations.
- Dual USB4 40Gbps Ports — Two rear USB4 ports provide Thunderbolt-compatible 40Gbps bandwidth for external NVMe enclosures, docks, and displays.
- Wi-Fi 7 & 2.5G LAN — Wi-Fi 7 (BE) wireless with Realtek 2.5Gbps wired Ethernet deliver high-bandwidth, low-latency connectivity for gaming, streaming, and content transfer.
- PCIe 5.0 x16 + Q-Release — Full-bandwidth PCIe 5.0 x16 GPU slot with PCIe Slot Q-Release for tool-free graphics card removal without bending the locking lever.

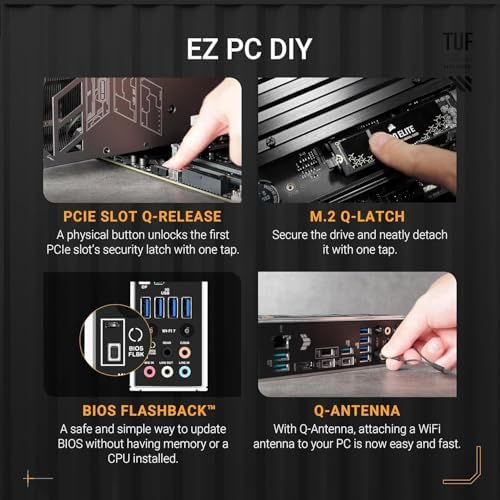

- DIY-Friendly — BIOS FlashBack, Q-Antenna for wireless antenna, M.2 Q-Latch, Q-LED diagnostic indicators, and a pre-mounted I/O shield simplify the build process.

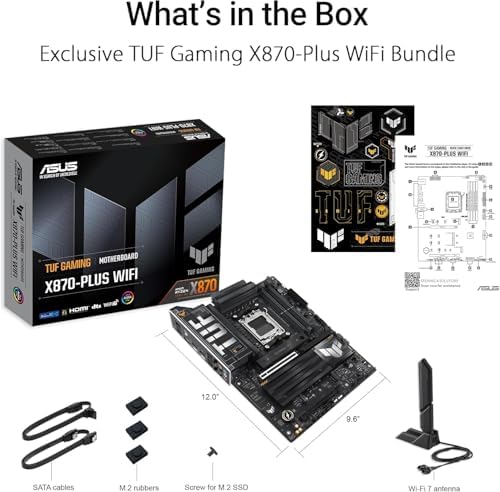

In the Box
- ASUS TUF Gaming X870-Plus WiFi Motherboard
- SATA cables
- Wi-Fi Q-Antenna
- M.2 Q-Latch screws
- User manual / quick installation guide
- Support DVD
Technical Specification
| Spec | Value |
|---|---|
| ASIN | B0DGQGQSG1 |
| Model | TUF GAMING X870-PLUS WIFI |
| CPU Socket | AM5 |
| Compatible CPUs | AMD Ryzen 9000 / 8000 / 7000 |
| Chipset | AMD X870 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Memory Max | 256GB |
| PCIe Slots | 1 × PCIe 5.0 x16 (Q-Release) |
| M.2 Slots | 2 × PCIe 5.0, 2 × PCIe 4.0 (all with heatsinks) |
| Wireless | Wi-Fi 7 (BE) |
| Ethernet | Realtek 2.5Gbps |
| USB (Rear) | 2 × USB4 40Gbps, USB 20Gbps Type-C |
| VRM | 16+2+1 (80A SPS) |
| AI Features | AI OC, AI Cooling II, AI Networking II |
| Item Weight | 1.8 kg |
| Country of Origin | India |
| Warranty | 3 Years |
