01 / 06MSI MAG X870 Tomahawk WiFi AM5 DDR5 ATX Gaming Motherboard
The MSI MAG X870 Tomahawk WiFi is an ATX AMD X870 gaming motherboard engineered for AMD Ryzen 9000, 8000, and 7000-series processors on the AM5 platform. A 14+2+1 Duet Rail VRM with 80A SPS power stages and Frozr AI cooling keep high-core-count CPUs stable under extended gaming and creative workloads. Four DDR5 DIMM slots support up to 256GB at 8400+ MT/s OC, and the primary PCIe 5.0 x16 slot with Steel Armor II delivers full-bandwidth GPU performance. Four M.2 slots including two Gen5 (128Gbps) and one Gen4 (64Gbps) provide ample high-speed storage, while Wi-Fi 7, 5Gbps LAN, and a USB 20Gbps Type-C rear port round out the connectivity. 3-year manufacturer warranty.
Features

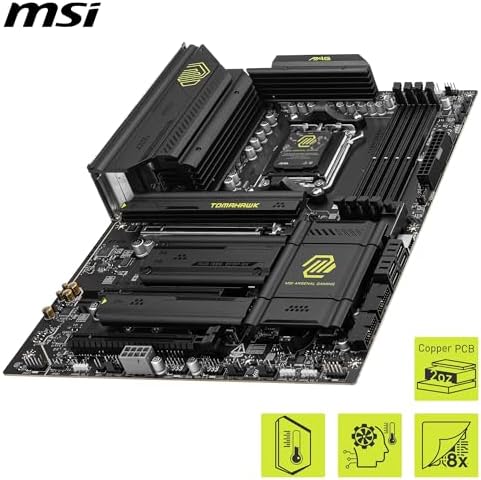

- 14+2+1 Duet Rail VRM (80A SPS) — High-current power stages with Frozr AI cooling, extended heatsinks, and 2 oz. copper-thickened PCB traces sustain peak CPU performance for Ryzen 9000-series processors.
- PCIe 5.0 x16 + PCIe 4.0 x16 — Steel Armor II-reinforced primary PCIe 5.0 slot delivers 128GB/s GPU bandwidth, with a secondary PCIe 4.0 x16 slot for expansion cards.
- DDR5 Memory Boost 8400+ MT/s — Four DDR5 DIMM slots support up to 256GB with extreme memory overclocking on 1DPC configurations.
- Quad M.2 Slots — Two PCIe Gen5 x4 (128Gbps) and one Gen4 x4 (64Gbps) M.2 slots with M.2 Shield Frozr II thermal covers prevent throttling during sustained NVMe workloads.
- Wi-Fi 7 & 5G LAN — Wi-Fi 7 (BE) with Bluetooth 5.4 and 5Gbps wired LAN deliver low-latency connectivity for competitive gaming and streaming.

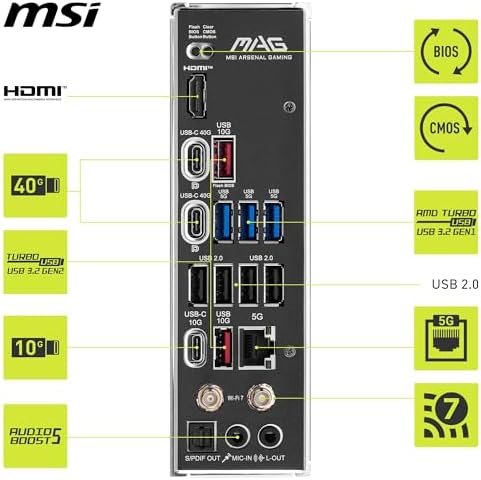

- USB 20Gbps Type-C & HDMI 2.1 — Rear IO includes a 20Gbps Type-C port, HDMI 2.1 video output, and 7.1-channel Audio Boost 5 with S/PDIF support.
- AMD X870 Chipset — X870 provides additional PCIe 4.0 bandwidth and enhanced connectivity over B850, suited to higher-end AM5 builds.
In the Box
- MSI MAG X870 Tomahawk WiFi Motherboard
- SATA cables
- Wi-Fi antenna
- M.2 screws and clips
- User manual / quick installation guide
- Driver disc
Technical Specification
| Spec | Value |
|---|---|
| ASIN | B0DCVVXK8D |
| Model | MAG X870 TOMAHAWK WIFI (7E51-001R) |
| CPU Socket | AM5 |
| Compatible CPUs | AMD Ryzen 9000 / 8000 / 7000 |
| Chipset | AMD X870 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Memory Max | 256GB |
| Memory Speed | Up to 8400+ MT/s (OC) |
| PCIe Slots | 1 × PCIe 5.0 x16 (Steel Armor II), 1 × PCIe 4.0 x16 |
| M.2 Slots | 2 × Gen5 x4 (128Gbps), 1 × Gen4 x4 (64Gbps) |
| Wireless | Wi-Fi 7 (BE), Bluetooth 5.4 |
| Ethernet | 5Gbps LAN |
| Video Output | HDMI 2.1 |
| USB (Rear) | USB 20Gbps Type-C |
| Audio | 7.1 Audio Boost 5, S/PDIF |
| VRM | 14+2+1 Duet Rail (80A SPS) |
| Item Dimensions | 30.5 × 24.4 cm |
| Item Weight | 1.0 kg |
| Country of Origin | China |
| Warranty | 3 Years |
