01 / 07MSI MAG B850 Tomahawk MAX WiFi AMD AM5 DDR5 ATX Motherboard

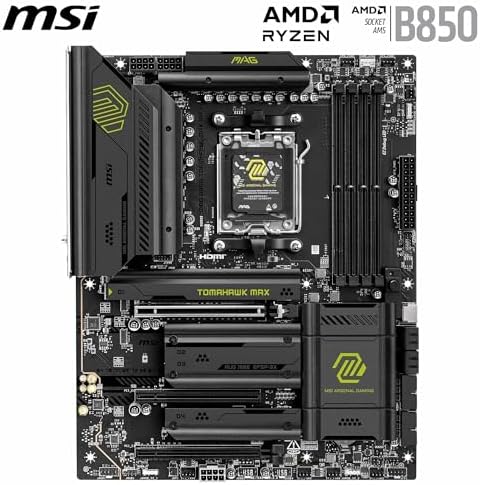

The MSI MAG B850 Tomahawk MAX WiFi is an ATX-form-factor AMD B850 motherboard built for AMD Ryzen 9000, 8000, and 7000-series processors on the AM5 platform. A 14+2+1 Duet Rail VRM (80A SPS) with Frozr Guard cooling provides headroom for sustained high-performance workloads, while four DDR5 DIMM slots support memory overclocking up to 8400+ MT/s. Connectivity is anchored by a PCIe 5.0 x16 slot with Steel Armor II, four M.2 slots (two Gen5, two Gen4), Wi-Fi 7 with Bluetooth 5.4, 5Gbps LAN, and USB 20Gbps Type-C on the rear IO panel. Backed by a 3-year manufacturer warranty.
Features
- 14+2+1 Duet Rail VRM (80A SPS) — High-density power stages with 7W/mK MOSFET thermal pads and an extended heatsink sustain full-load performance across Ryzen 9000, 8000, and 7000 CPUs.
- DDR5 Memory Boost 8400+ MT/s — Four DDR5 DIMM slots support up to 256GB RAM with extreme overclocking headroom on a single 1DPC configuration.
- PCIe 5.0 x16 Slot — Steel Armor II-reinforced PCIe 5.0 x16 slot (128GB/s) provides full bandwidth for current and next-generation discrete GPUs.

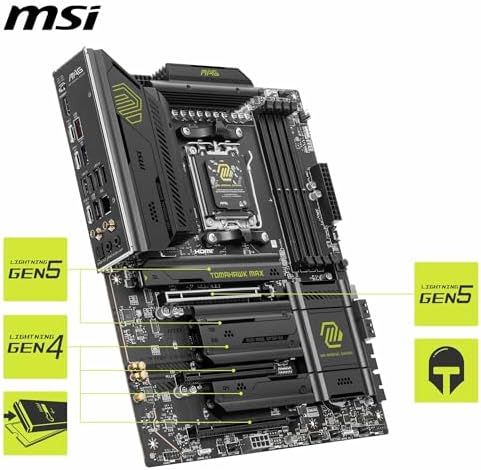

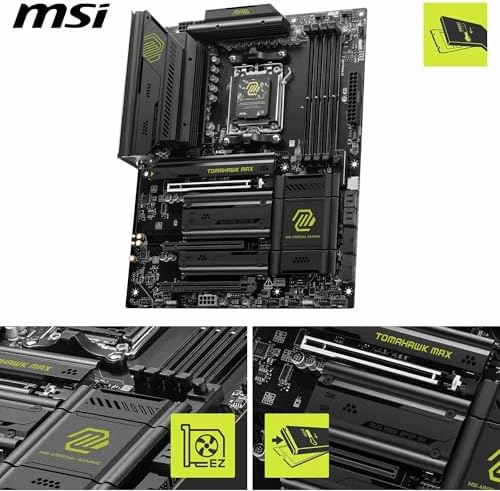

- Quad M.2 Slots — Two PCIe Gen5 x4 (128Gbps) and two Gen4 slots (64Gbps + 32Gbps) with EZ M.2 Shield Frozr II thermal covers and tool-free EZ M.2 Clip II installation.
- Wi-Fi 7 & 5G LAN — Full-speed Wi-Fi 7 (BE) with Bluetooth 5.4 and 5Gbps wired LAN provide low-latency, high-throughput connectivity for gaming and streaming.

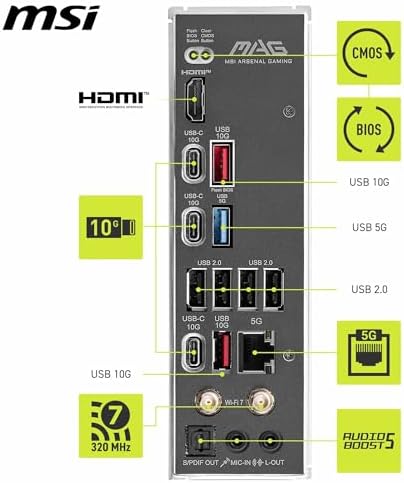

- USB 20Gbps Type-C — Rear IO includes a USB 20Gbps Type-C port for fast data transfer and peripheral connectivity alongside 7.1-channel USB Audio Boost 5 with S/PDIF output.
- FROZR Guard Cooling — Chipset heatsink, choke thermal pads, and a combination fan/pump header (3A) keep VRM and chipset temperatures stable under extended load.

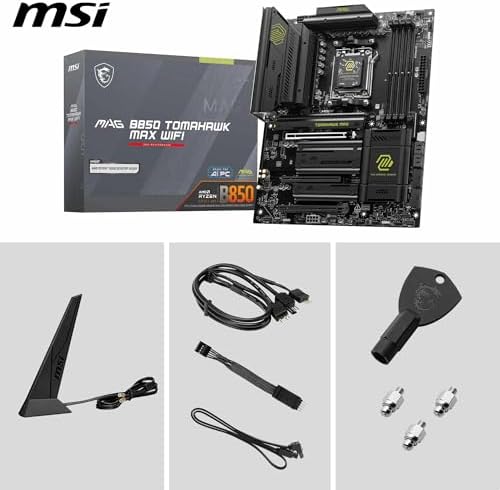

In the Box

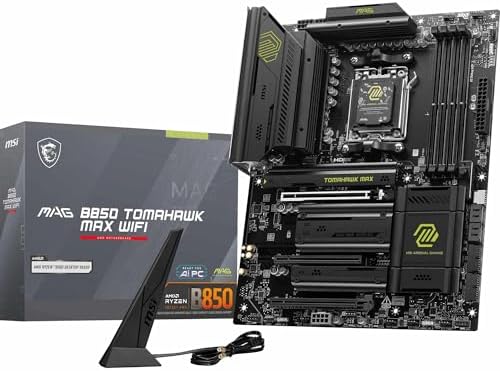

- MSI MAG B850 Tomahawk MAX WiFi Motherboard
- SATA cables
- Wi-Fi antenna
- M.2 screws and EZ M.2 Clips
- User manual / quick installation guide
- Driver disc
Technical Specification
| Spec | Value |
|---|---|
| ASIN | B0DPKVF29H |
| Model | MAG B850 TOMAHAWK MAX WIFI (7E62-002R) |
| CPU Socket | AM5 |
| Compatible CPUs | AMD Ryzen 9000 / 8000 / 7000 |
| Chipset | AMD B850 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Memory Max | 256GB |
| Memory Speed | Up to 8400+ MT/s (OC) |
| PCIe Slots | 1 × PCIe 5.0 x16 (Steel Armor II) |
| M.2 Slots | 2 × Gen5 x4 (128Gbps), 1 × Gen4 x4 (64Gbps), 1 × Gen4 x2 (32Gbps) |
| Wireless | Wi-Fi 7 (BE), Bluetooth 5.4 |
| Ethernet | 5Gbps LAN |
| USB (Rear) | USB 20Gbps Type-C |
| Audio | 7.1 USB High Performance Audio Boost 5, S/PDIF |
| VRM | 14+2+1 Duet Rail (80A SPS) |
| Item Dimensions | 30.5 × 24.3 cm |
| Country of Origin | China |
| Warranty | 3 Years |
