MSI MAG X870E Tomahawk MAX WiFi ATX AM5 Motherboard
Current Price
₹37,065.00
GST incl.
Out of Stock
100% Genuine
Authentic Products
Warranty
1 Year
Expert Support
Authorized Help
Description

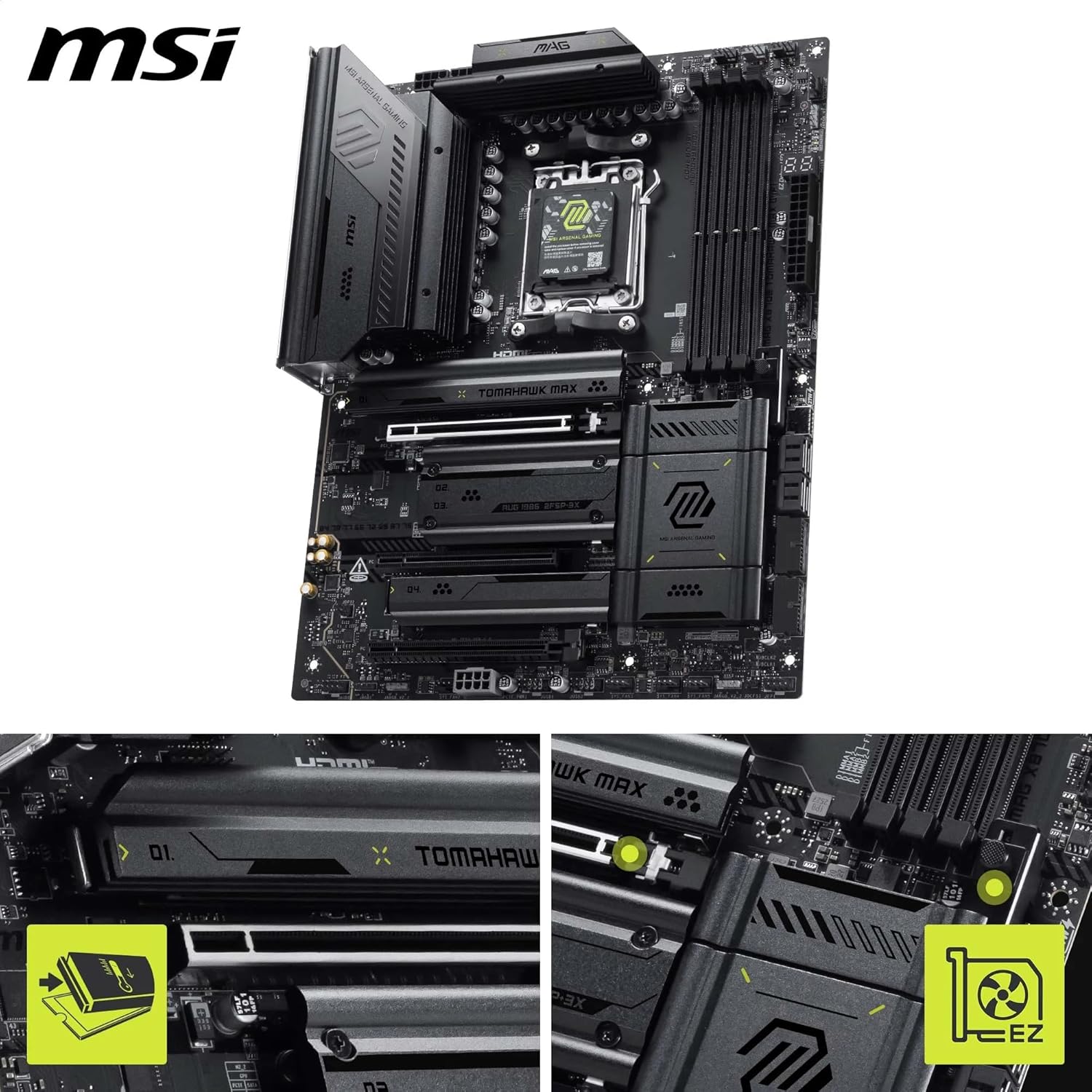

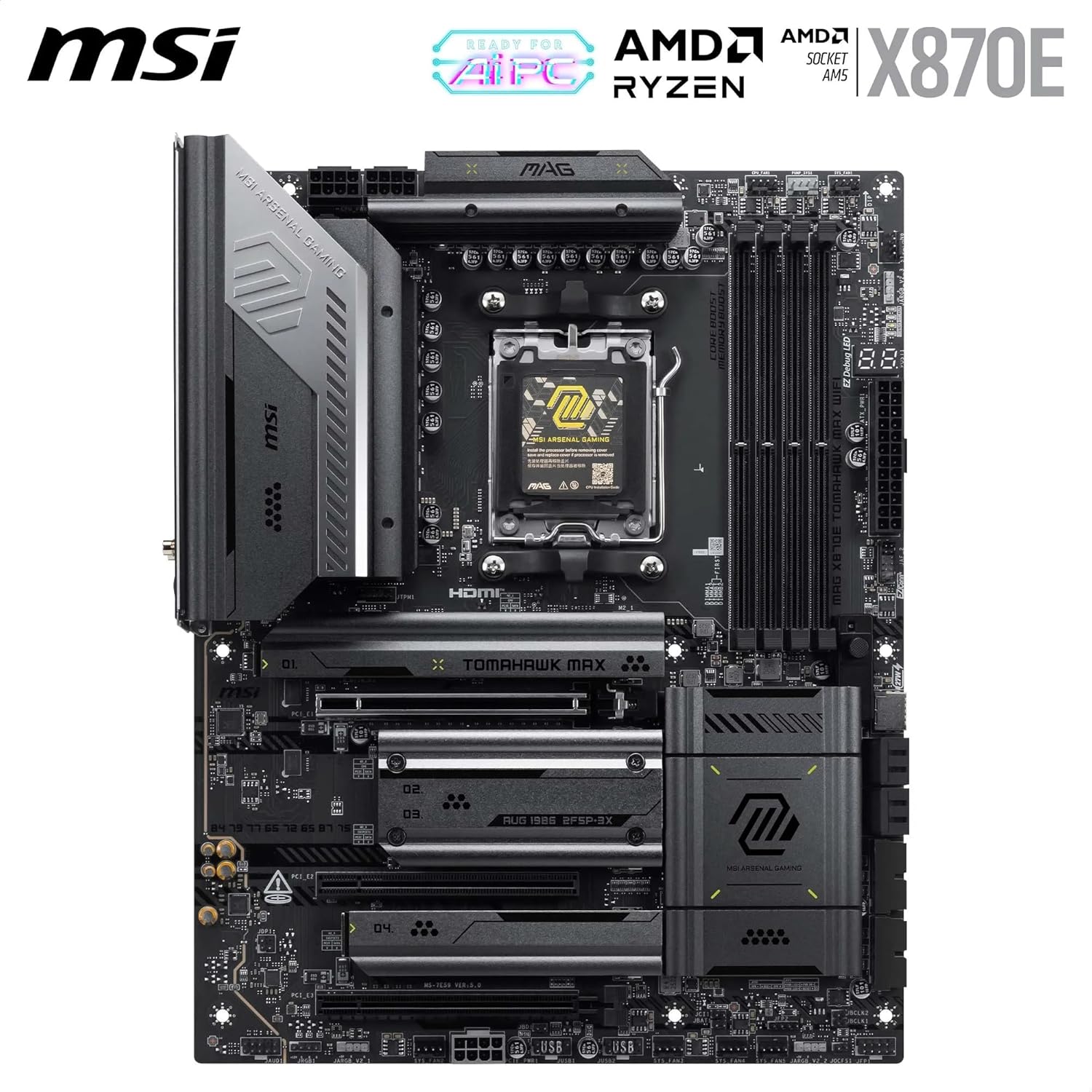

The MSI MAG X870E Tomahawk MAX WiFi is a premium ATX motherboard built for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. Powered by the AMD X870E chipset, it delivers a 14 Duet Rail Power Phase design with 80A SPS for stable overclocking, DDR5 memory support up to 256GB at 8400+ MT/s, PCIe 5.0 x16 graphics, and four M.2 slots (two Gen5, two Gen4) with EZ M.2 Shield Frozr II cooling. Connectivity is headlined by Wi-Fi 7, Bluetooth 5.4, a Realtek 8126 5 Gbps LAN, and dual USB4 Type-C 40Gbps rear ports, making it ideal for high-end gaming and content-creation builds.
- Ultra Power Delivery -- 14 Duet Rail Power Phase design with 80A SPS and Core Boost architecture for rock-steady performance under Ryzen 9000 workloads.

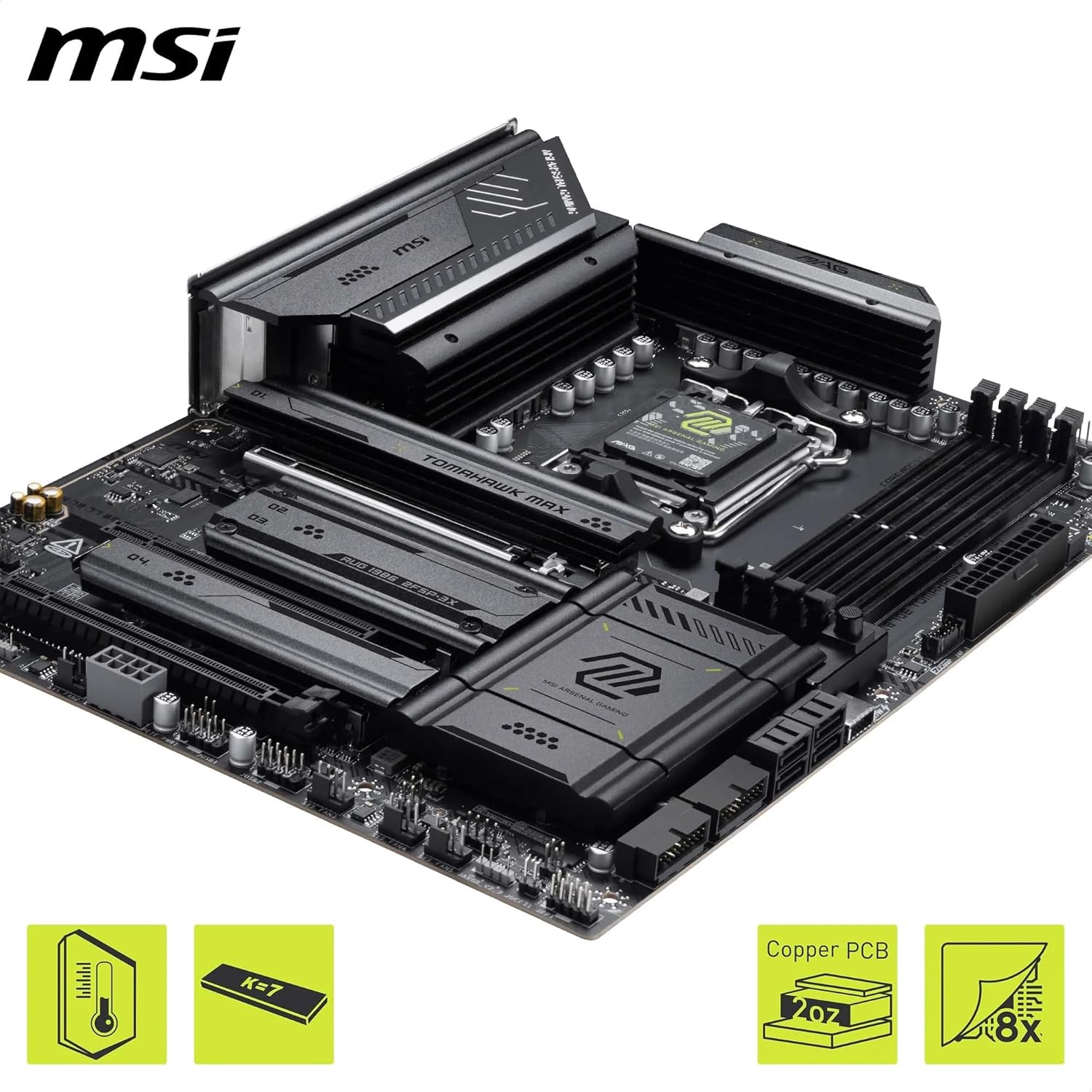

- FROZR Guard Cooling -- 7 W/mK MOSFET thermal pads, extended VRM heatsink and EZ M.2 Shield Frozr II keep the board and drives cool during sustained loads.
- DDR5 8400+ MT/s OC -- 4x DDR5 DIMM slots support up to 256GB with AMD EXPO profiles and memory boost up to 8400+ MT/s in 1DPC 1R configuration.
- PCIe 5.0 Graphics -- 1x PCIe 5.0 x16 Steel Armor II slot delivers full 128 GB/s bandwidth to current-gen graphics cards.

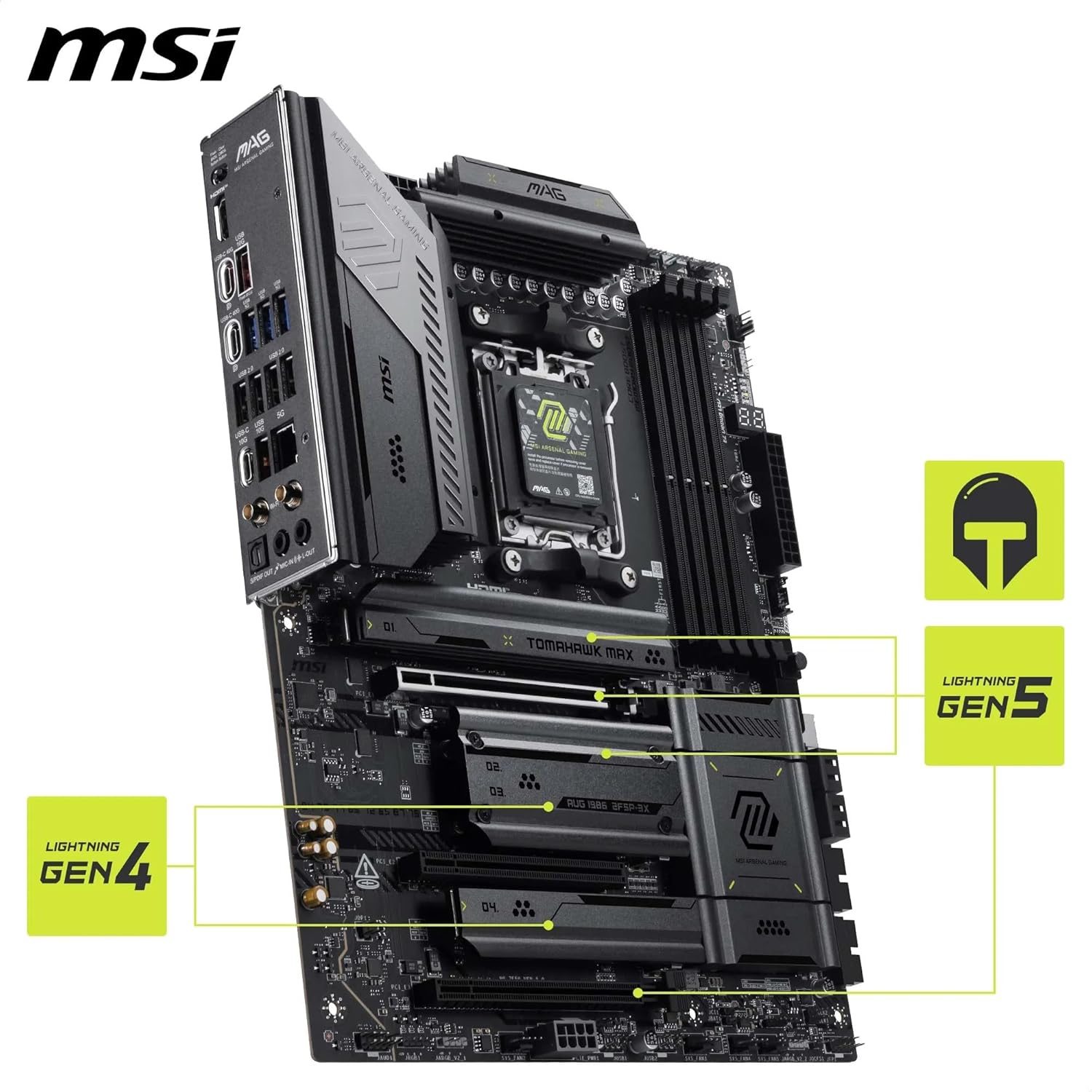

- Quadruple M.2 Storage -- 2x M.2 Gen5 x4 (128 Gbps) + 2x M.2 Gen4 x4 (64 Gbps) slots with tool-less EZ M.2 Shield Frozr II covers.
- Wi-Fi 7 + 5 Gbps LAN -- Pre-installed Wi-Fi 7 module with Bluetooth 5.4 plus a Realtek 8126 5 Gigabit wired LAN for fastest-in-class connectivity.
- USB4 40Gbps -- 2x rear USB4 Type-C ports carry 40 Gbps data and DisplayPort 1.4 video out, ideal for docks and external storage.
- EZ DIY Features -- EZ Debug LEDs, EZ Digit Debug LED, EZ Memory Detection LED, Flash BIOS and Clear CMOS buttons simplify troubleshooting and updates.

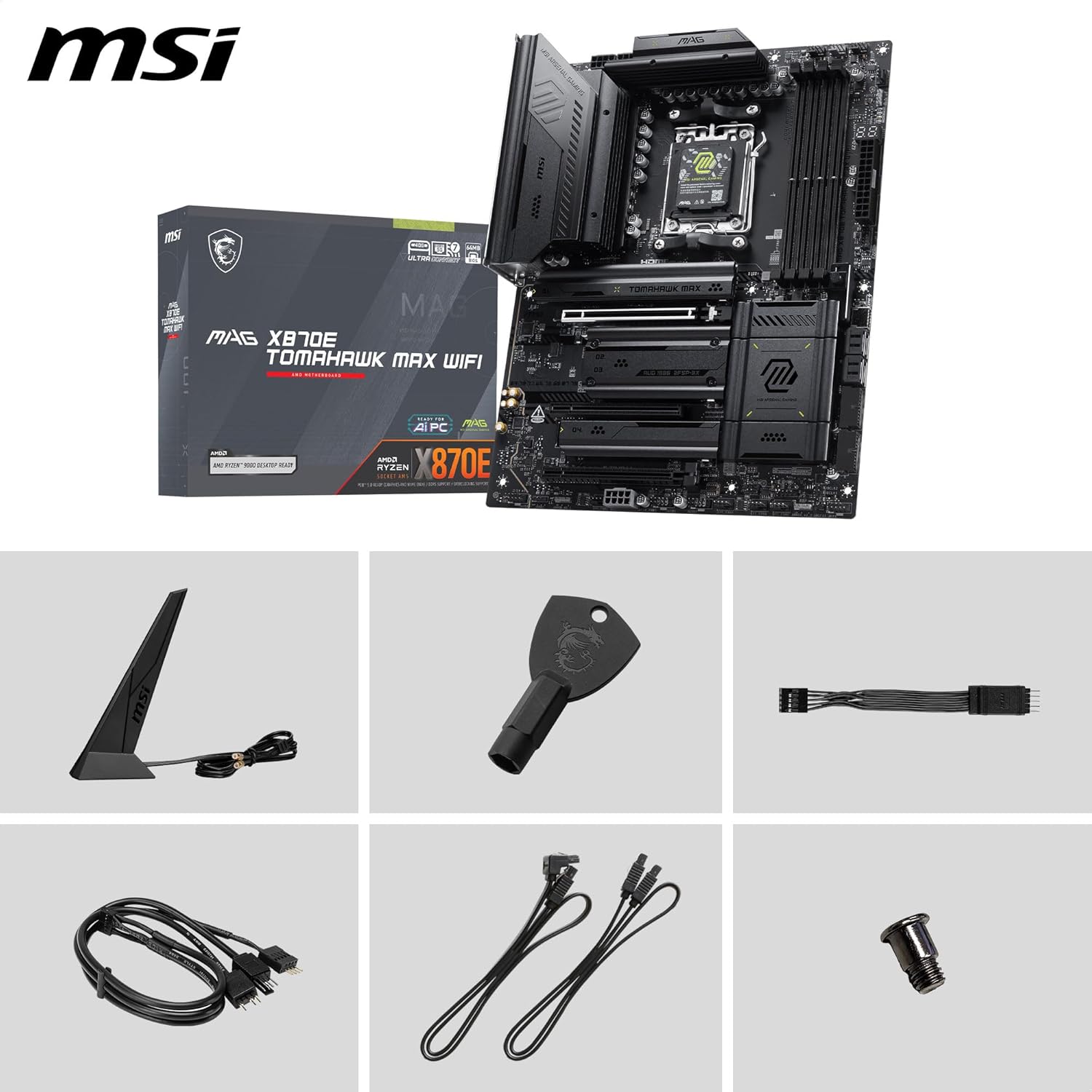

- MSI MAG X870E Tomahawk MAX WiFi motherboard
- Wi-Fi antenna
- SATA cables
- M.2 mounting screws / stand-offs
- Quick installation guide & driver media
- MSI product registration card
| Spec | Value |
|---|---|
| Socket | AMD AM5 |
| Supported CPUs | AMD Ryzen 9000 / 8000 / 7000 Series |
| Chipset | AMD X870E |
| Form Factor | ATX (243.84 x 304.8 mm) |
| Memory | 4x DDR5 UDIMM, up to 256 GB |
| Memory Speed | Up to 8400+ MT/s (OC), 5600 MT/s (JEDEC) |
| PCIe | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1 |
| M.2 Slots | 4 total -- 2x M.2 Gen5 x4, 2x M.2 Gen4 x4 |
| SATA | 4x SATA 6 Gbps |
| LAN | 1x Realtek 8126 5 Gbps |
| Wireless | Wi-Fi 7 + Bluetooth 5.4 |

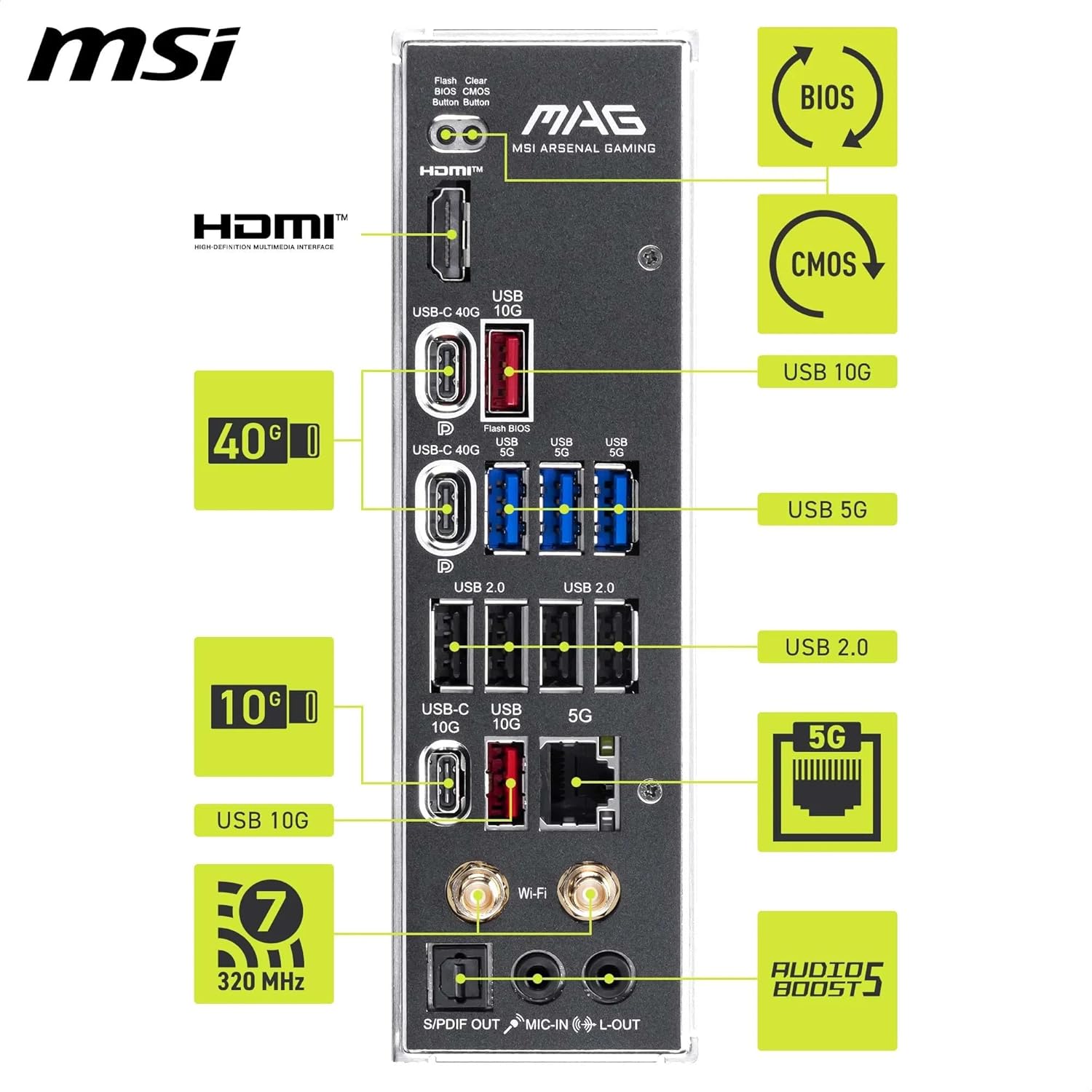

| USB (Rear) | 2x USB4 Type-C 40 Gbps, 1x USB 10 Gbps Type-C, 2x USB 10 Gbps Type-A, 3x USB 5 Gbps Type-A, 4x USB 2.0 |
| USB (Front) | 1x USB 20 Gbps Type-C, 4x USB 5 Gbps Type-A, 4x USB 2.0 |
| Video Out | 1x HDMI 2.1 (up to 8K60), 2x DisplayPort via USB4 Type-C |
| Audio | Realtek ALC4080, 7.1-Channel |
| RAID | 0, 1, 5, 10 (NVMe) / 0, 1, 10 (SATA) |
| OS Support | Windows 11 64-bit |
